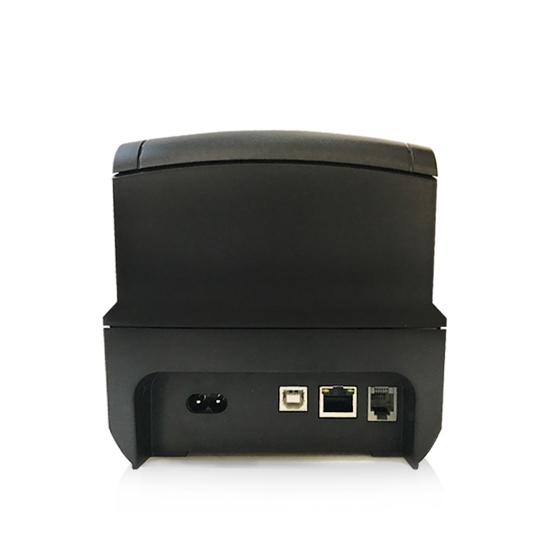

Auto-cutting 80mm Thermal Receipt Printer (Model No.: E802)

80mm(3inch) thermal receipt printer Large paper roll High-speed 250mm/s Auto cutter Suitable for restaurants, retail chain stores, and take-out stores With the Low-noise mechanism Multi I/O Interface Easy maintenance and fascinating high-speed performance
  • item no.:

    E802
  • lead time:

    10-20days
  • product orgin:

    China
  • shipping port:

    Shenzhen port
  • color:

    black
  • Quality warranty:

    15 Months
inquiry now


Printing Performance

Printing Method
Direct Thermal Printing
Printing density
8 dots/mm(203dpi), 576 dots/line
Printing speed
250mm/s
Effective Printing Width
72mm
Paper width
80 mm±0.5mm
Printing support

Customize Characters
Support
Image Printing
Support different density dots pictures and download bitmap printing
Font Size

ANK character, Font A:1.5×3.0mm(12×24dots)Font B: 1.1×2.1mm(9×17dots)

Extended Characters

PC437、 KataKana、 PC850、 PC860、 PC863、PC865、 WPC1251、 PC866、 MIK、PC755、Iran、Reserve、PC862、WPC1252、WPC1253、

PC852、PC858、Iran II、Latvian、PC864、 ISO-8859-1、PC737、 WPC1257、Thai、PC720、PC855、PC857、WPC1250、PC775、WPC1254、

WPC1255、WPC1256、WPC1258、ISO-8859-2、ISO-8859-3、ISO-8859-4、ISO-8859-5、ISO-8859-6、ISO-8859-7、ISO-8859-8、ISO-8859-9、

ISO-8859-15、Thai2、PC856

Barcode
1D
UPC-A; UPC-E; EAN-13; EAN-8; CODE39; CODE93; CODABAR; ITF25; CODE128
2D
PDF417; QRcode; Data Matrix
Extended Characters
LAN、USB、(Bluetooth+WIFI for optional)
Support functions
Sound alarm, lack paper alarm, black label detection, over-heat protection, cutter wrong position detection, top cover not tight detection
Cash Drawer Control
DC24V, 1A, 6 wire RJ-11 plug
Power
AC Power
AC110-240V, 1.5A(max)
Paper type
Thermal paper 80ר80mm
Paper Thickness
0.06mm~0.08mm
Loading Method
Simple method
Cutting method
Auto-cutting
Appearance
Size
182mm×132mm×133mm  (L×W×H)
Environmental
Working Temperature:5 ~ 50℃, humidity:10 ~ 80%
Storage
Temperature:-20 ~ 60℃ ,humidity:10 ~ 90%
Lifetime
Reliability
Movement reliability 150 km, cutter lifetime 1,000,000 times
