Auto-cutting 80mm thermal printer (Model No.：E801）


thermal receipt printer
thermal receipt printer thermal receipt printer thermal receipt printer thermal receipt printer

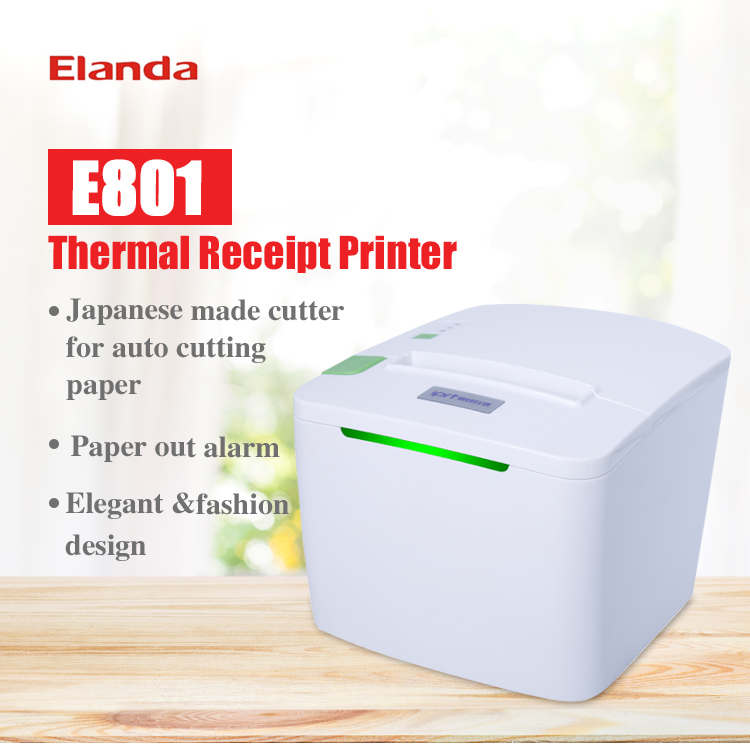

Auto-cutting 80mm thermal printer (Model No.：E801）

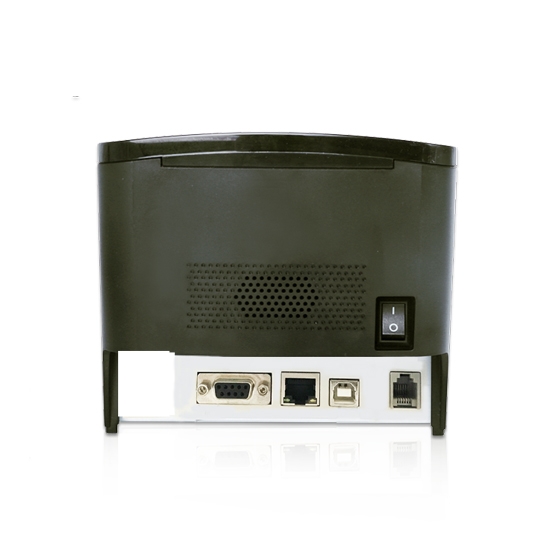

Features: 80mm(3inch) thermal receipt printer Large paper roll High-speed 250mm/s Auto cutter Suitable for restaurants, retail chain stores, and take-out stores With the Low-noise mechanism Multi I/O Interface Easy maintenance and fascinating high-speed performance

  • item no.:

    E801

  • lead time:

    10-20days

  • product orgin:

    China

  • shipping port:

    Shenzhen port

  • color:

    white/black

  • Quality warranty:

    15 Months
inquiry now




Printer ability
Printing Method
 Thermal Line Printing
Printing density
 8 dots/mm, 576 dots/line
Printing speed
 Max:250mm/s
Effective Printing Width
 72mm
Paper width
 80 mm±0.5mm
Printing support
self-defining character
 Support
Graphic printing
 Support different density point maps and download bitmap printing
Font Size
 ANK characters, Font A: 1.5×3.0mm（12×24pt; Font B：1.1×2.1mm（9×17pt）
National standard three-level character bank: simplified or traditional: 3.0×3.0mm(24×24pt）
Extended Characters

PC437 、 KataKana、 PC850、 PC860、 PC863、PC865、 WPC1251、 PC866、 MIK、PC755、Iran、Reserve、PC862、WPC1252、WPC1253、PC852、

PC858、Iran II、Latvian、PC864、 ISO-8859-1、PC737、 WPC1257、Thai、PC720、PC855、PC857、WPC1250、PC775、WPC1254、WPC1255、WPC1256、

WPC1258、ISO-8859-2、ISO-8859-3、ISO-8859-4、ISO-8859-5、ISO-8859-6、ISO-8859-7、ISO-8859-8、ISO-8859-9、ISO-8859-15、Thai2、PC856

Barcode
 1D
Power
DC
 DC24V±10％, 2A External power supply
Supply
DC
 DC24V±10％, 2A External power supply
Paper specifications
Type
 Thermal roll paper 80×Ø 80mm
Thickness
 0.06mm～0.08mm
Paper In Method
 Simple to install
Paper Out Method
 Auto cut
