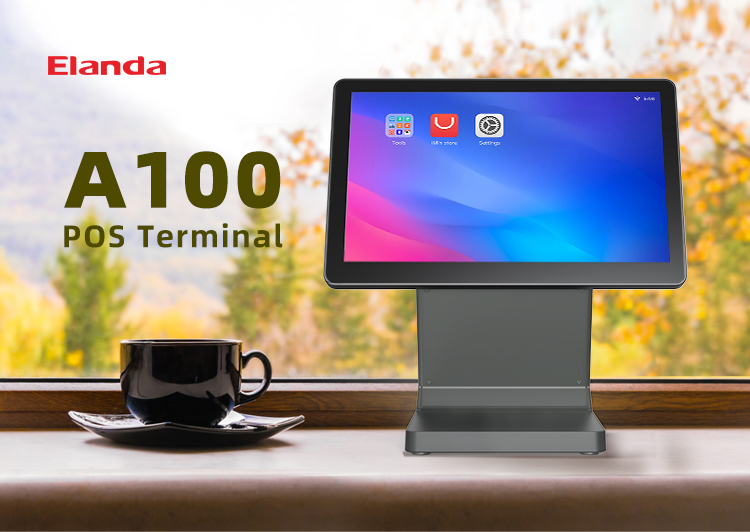

11.6inch Space-saving Touch POS Terminal (Model No.: A100)

11.6inch Space-saving Touch POS Terminal (Model No.: A100)

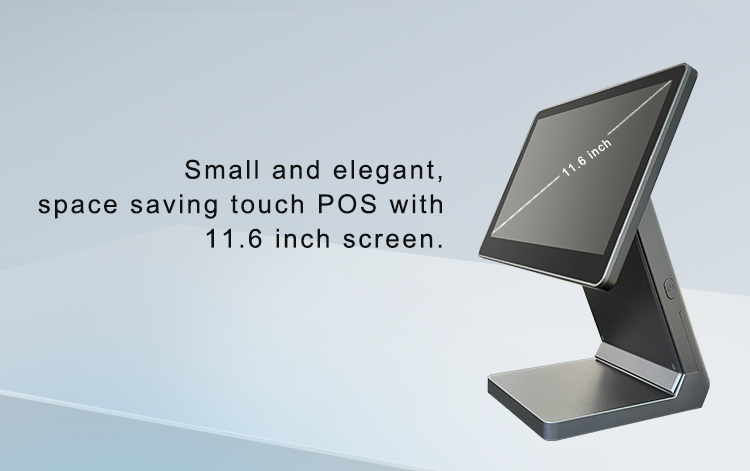

Android 11 OS Small size and space saving 11.6 inch touch screen main display (1366*768), 3.5" customer display (320*480) With QR code scanner Support wifi and Bluetooth Rich I/O ports. Multi-langiage With play store

item no.:
A100
product orgin:
China
shipping port:
Shenzhen
color:
Grey
Motherboard:
RK3568
Main screen size:
11.6 inch
Monitor resolution:
1366*768
Second screen:
3.5 inch
Quality warranty:
15 Months

inquiry now

feature
specification

Model Number		A100
CPU Support		Rockchip3566 ,Cortex-A55 , up to 1.8 GHz	Rockchip3568 ,Cortex-A55 , up to 2.0GHz
System Memory		DDR4,4G(Onboard) (2G for optional)
Storage		eMMC 32G (Onboard) (32G for optional)
LCD	Size	11.6" TFT LCD Panel
	Brightness	220cd/m2 (Typ.)
	Resolution	1366x 768
Touch Screen		True-Flat Projected Capacitive Touch
Tilt Angle		0 ~ 60 degree
External I/O Port	USB	4 x USB 2.0
	Serial port	N/A
	Cash Drawer Port	1 x Cash Drawer Port (RJ12)
	LAN	1 x LAN (10/100Mb)
	Audio	N/A
	DC-IN	1 x 4Pins DC In
	reboot	1x Uboot
	Power Switch	1 x Power Switch
Speaker		1 x 2W speaker (Optional)

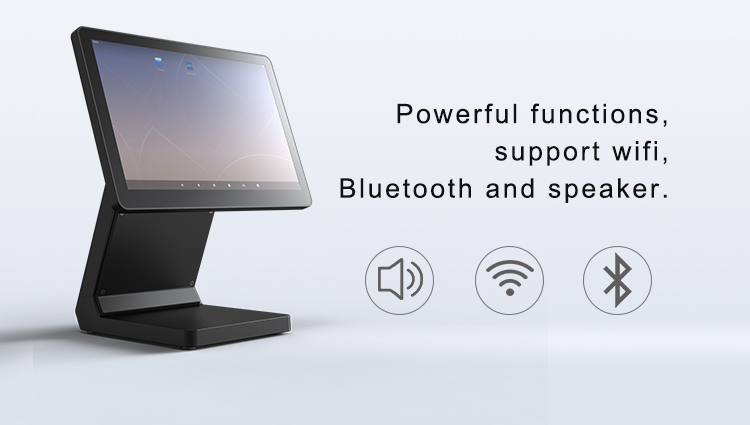

WiFi&BT		WiFi IEEE802.b/g/n/BT4.2(Onbaord)
Power		External power adapter,12V-3A/36W
EMC Safety		CE, ROHS
Environment	Operating Temperature	0°C ~ 35°C
	Storage Temperature	-15°C ~ 60°C
	Operating Humidity	20% - 85% RH non condensing
	Storage Humidity	20% - 85% RH non condensing

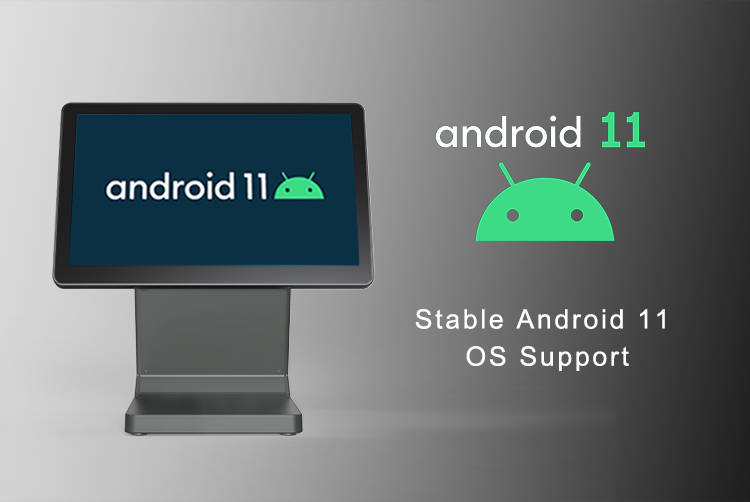

OS Support		Android 11.0
Color		Silver&Grey( White&Black Optional)
Packing size		220mm340mm340mm
Weight (N.W./G.W.)		3.2kg

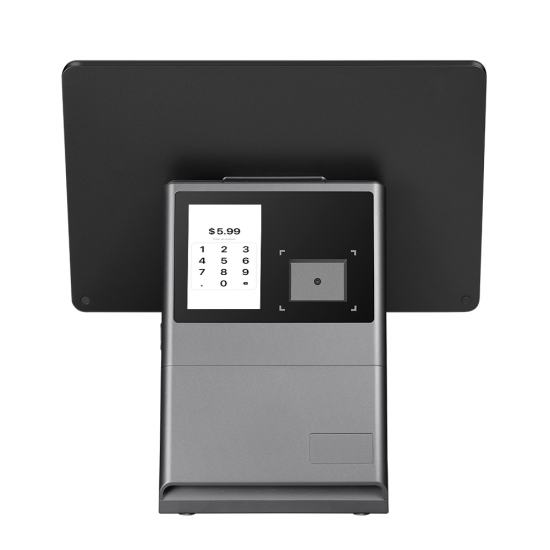

Optional	Scanner		2D QR Code Scanner

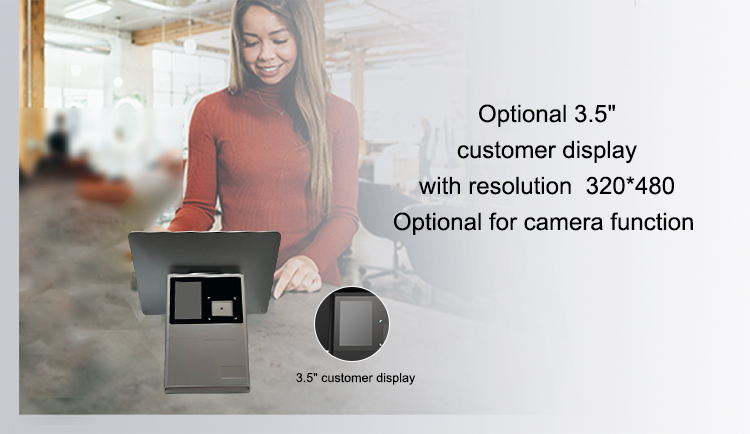

	2nd Display	N/A	3.5" (320x480)
