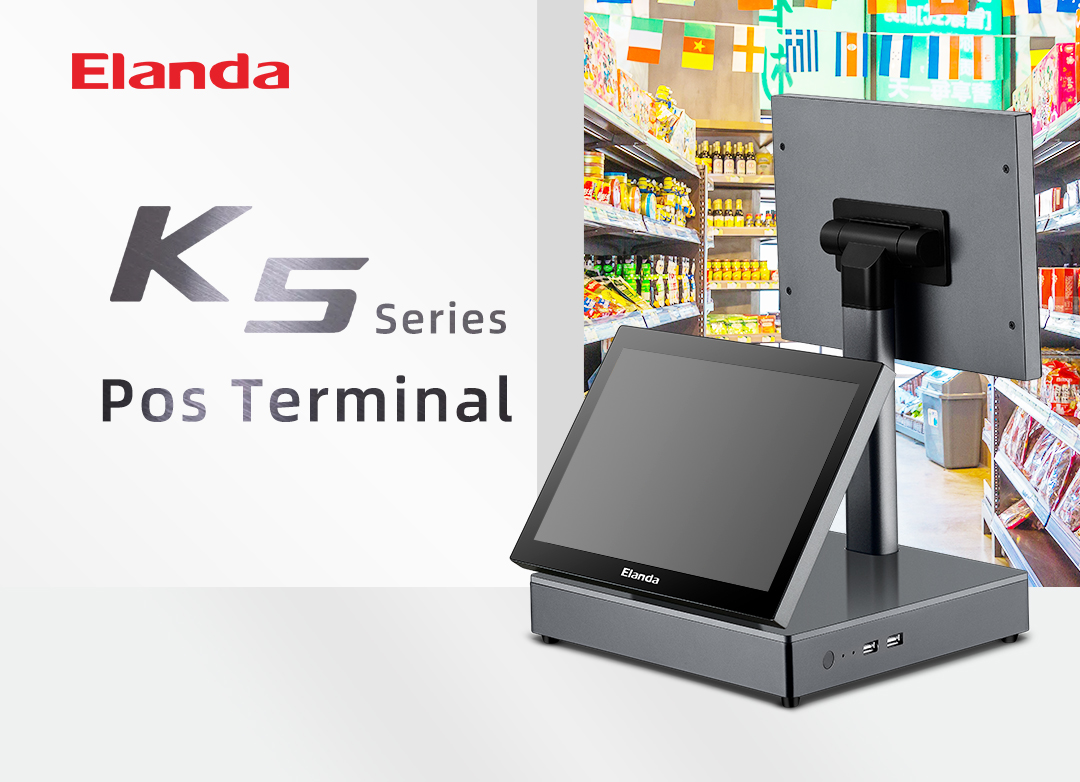

12.1 inch Foldable Full Aluminum Touch POS Terminal Suitable for Supermarket (Model No. : K5)

12.1 inch Foldable Full Aluminum Touch POS Terminal Suitable for Supermarket (Model No. : K5)

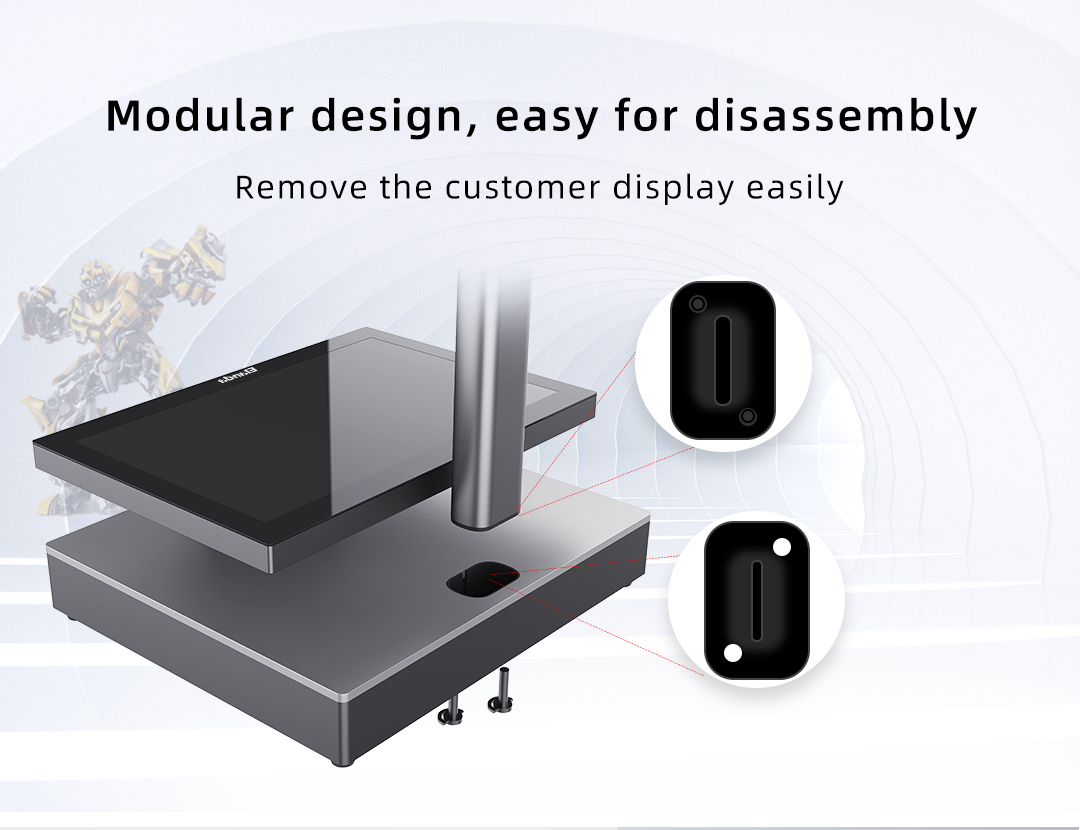

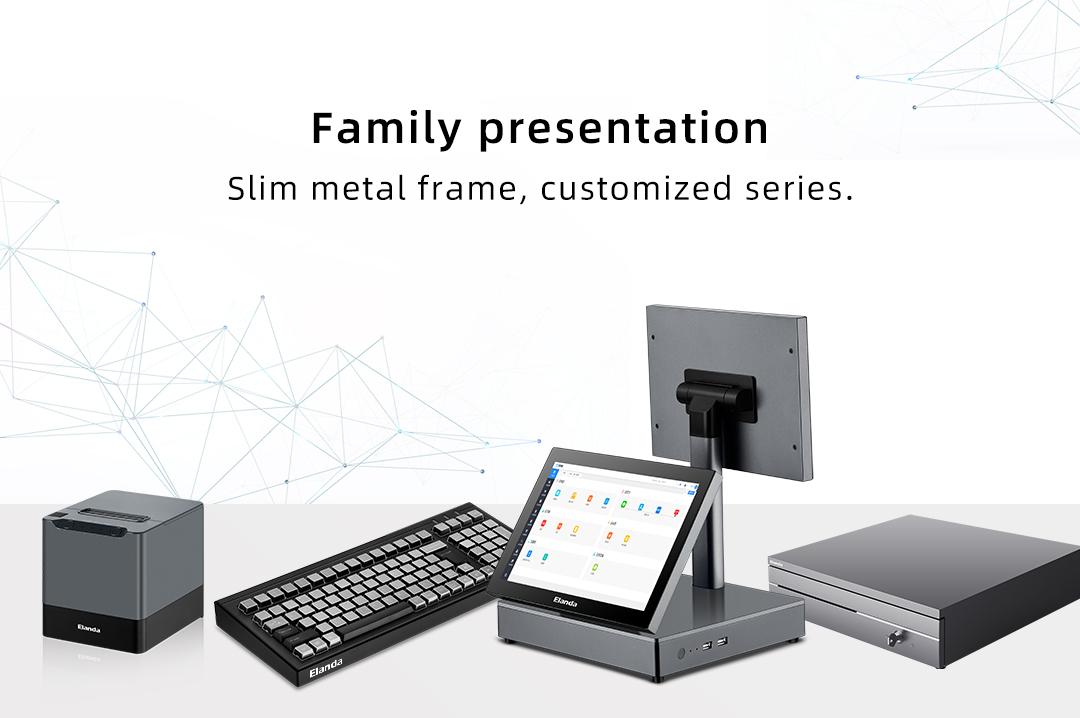

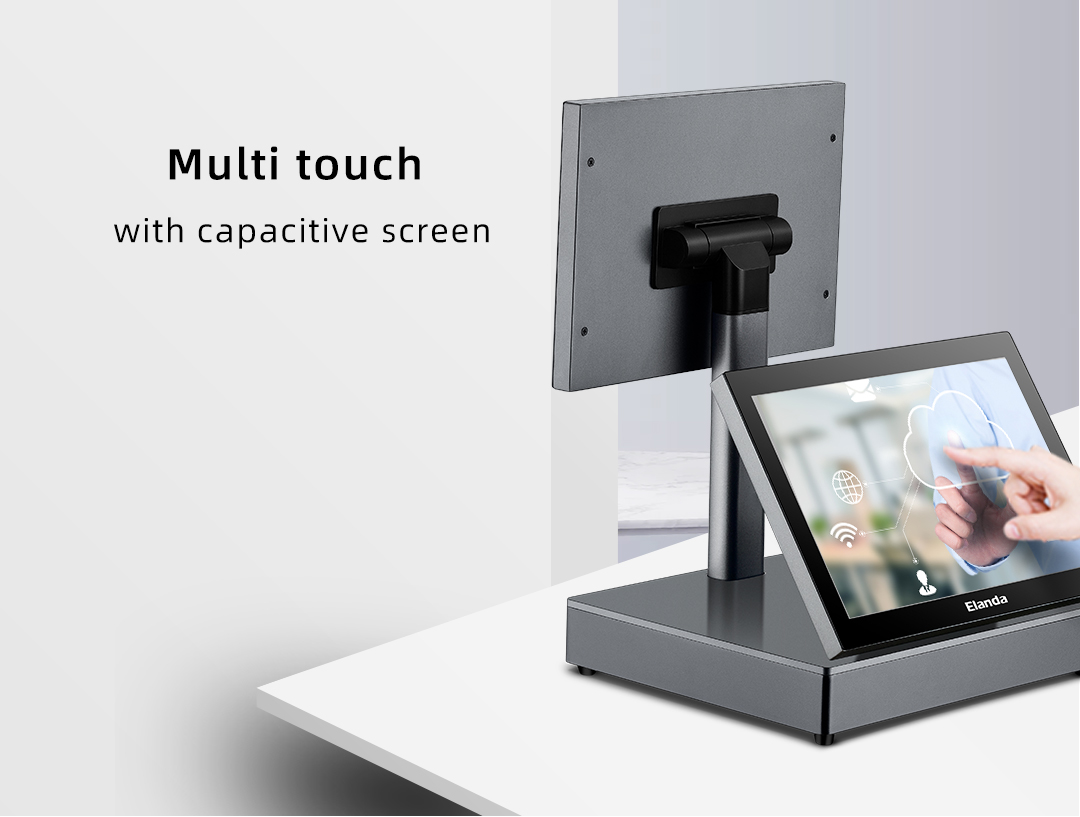

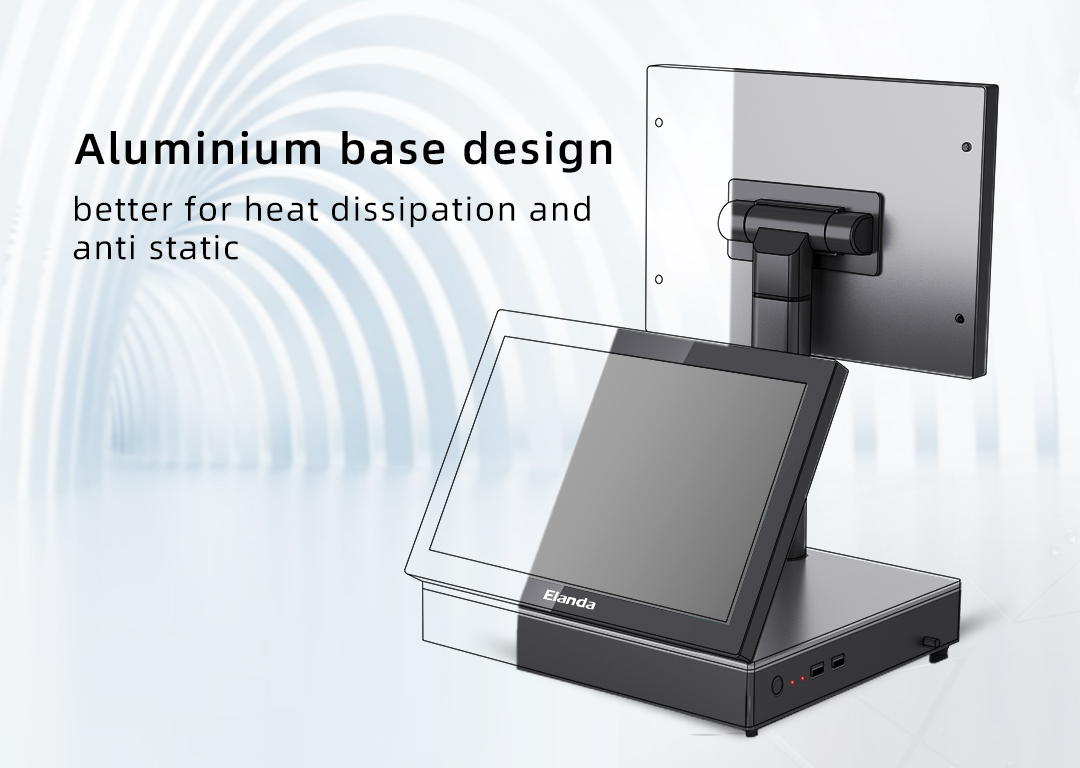

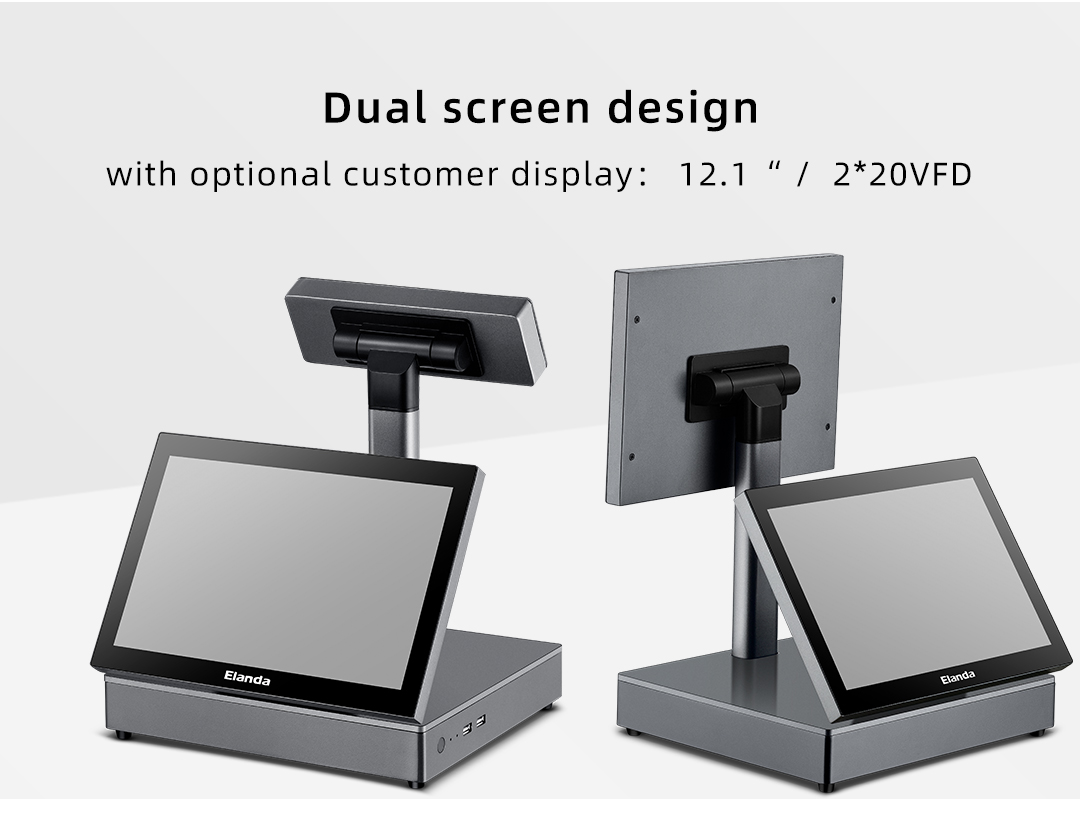

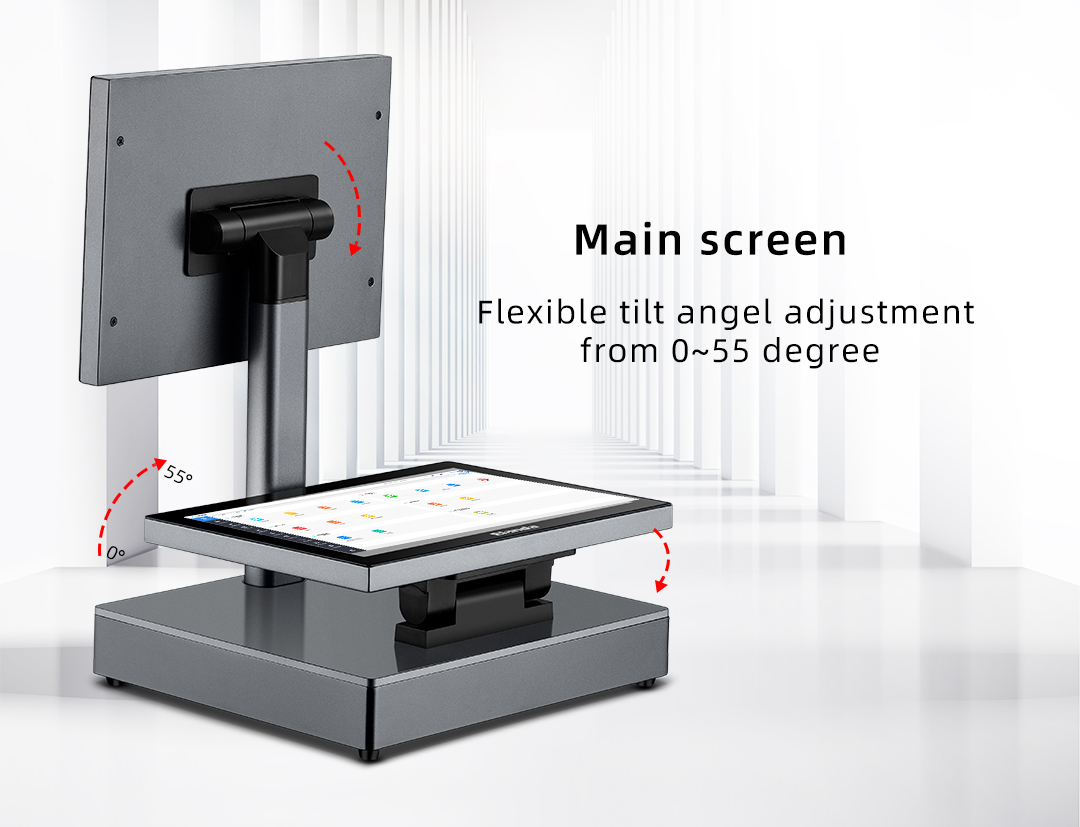

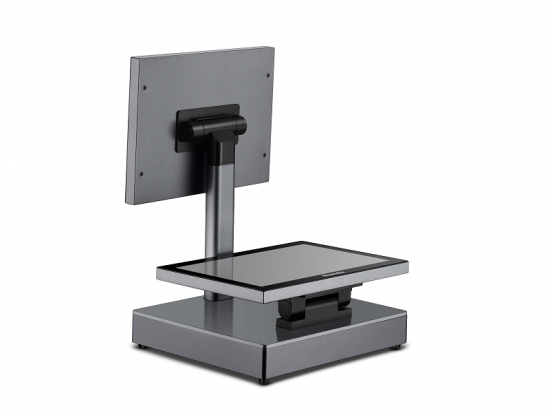

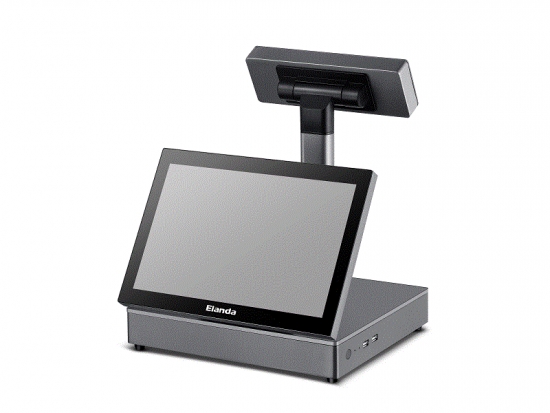

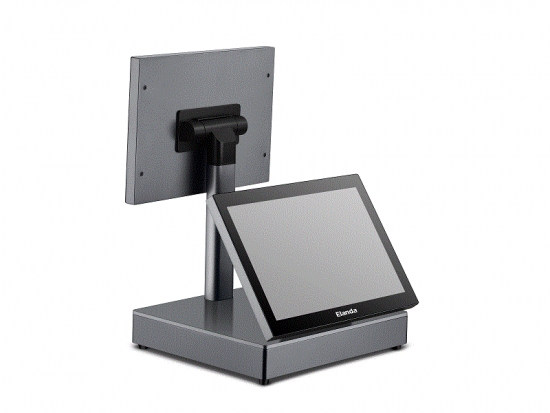

Flexible tilt angel adjustment from 0~55 degree for main screen Dual screen design with optional for customer display 12.1'' / 2*20VFD Modular design, easy for disassembly Multi touch with capacitive screen Full aluminum base design, better for heat dissipation and anti static Slim metal frame, customized series Stylish design for better cable management

item no.:
K5
Motherboard:
J1900 / J1800 / I3
Main screen size:
12.1''
Monitor resolution:
1280*800
Second screen:
12''
Quality warranty:
2 years

inquiry now

feature
specification

Model Number		K5
CPU Support		Intel® Celeron® Processor J1900(2MCache,2.00GHz up to 2.42GHz)	Intel® Celeron® Processor J1800(2M Cache,2.41GHz up to 2.58GHz)	Intel® Croe Processor I3-4020
System Memory		DDR3L, SO-DIMM x 1, 4GB (Max8G)	DDR3L, SO-DIMM x 1, 4GB (Max16G)	DDR3L, SO-DIMM x 1, 4GB (Max16G)
Storage	HDD	/
	SSD	1 x mSATA SSD 64GB (Max. 256GB)
LCD	Size	12" TFT LCD Panel
	Brightness	350cd/m2 (Min.) --- 400cd/m2 (Typ.)
	Resolution	1280*800
Touch Screen		True-Flat Projected Capacitive Touch
Tilt Angle		0 ~ 55 degree
External I/O Port	Rear	2 x USB 3.0 + 4 x USB 2.0 Ports
		1x COM (RS232)
		1 x VGA
		1 x HDMI
		1 x LAN (100M)
		1 x MIC
		1 x Line-out
		1 x DC In
		1 x LPT
		1 x Power Switch
Speaker		/
Customer Display		LED 8N
Power		External power adapter, 60W/12V (Lock type)
Environment	Operating Temperature	0°C ~ 35°C
	Storage Temperature	-15°C ~ 60°C
	Operating Humidity	20% - 85% RH non condensing
	Storage Humidity	20% - 85% RH non condensing
OS Support		Windows 7 / 8 / 10
Wall Mount		/
optional	WIFI + Bluetooth	1*WIFI+Bluetooth（Mini-PCIe）
	MSR	/
	2nd Display	12" TFT LCD Panel/1280*800
