All-In-One POS Touch Screen Systems,Dual Screen Windows POS Terminal

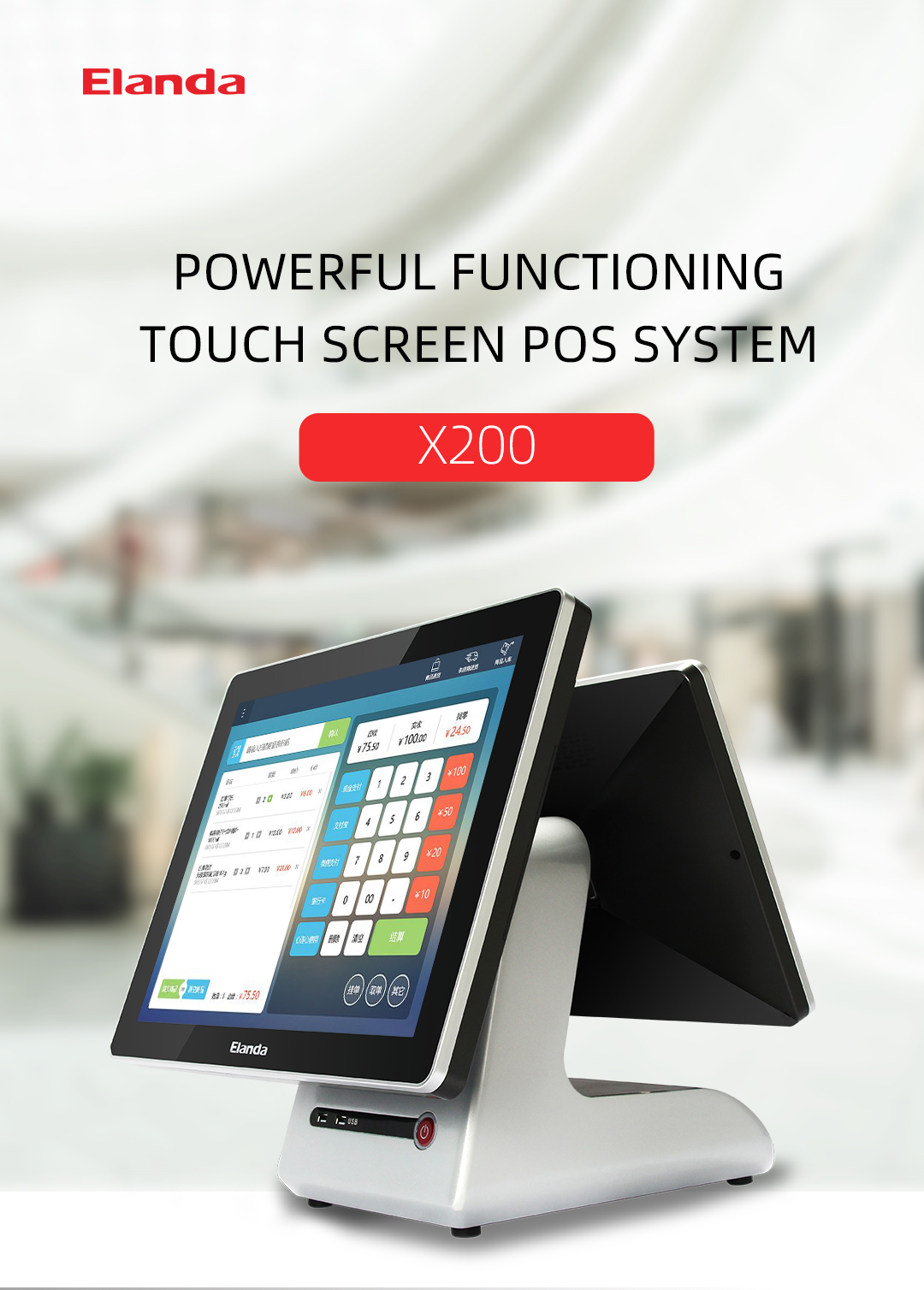

15 inch Dual Screen Touch POS Terminal (Model No.: X200)

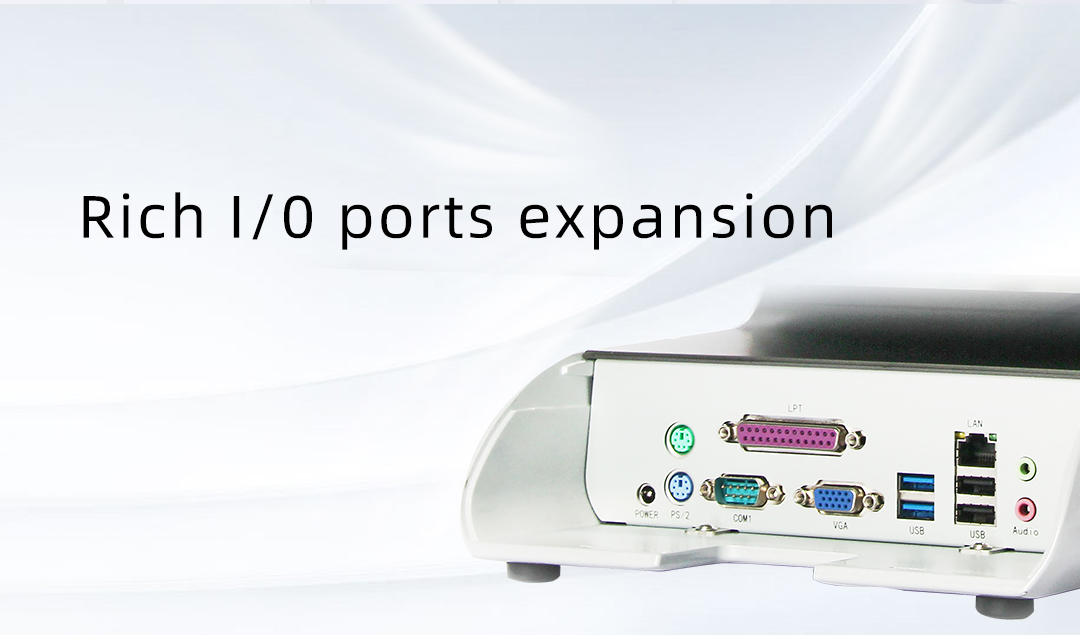

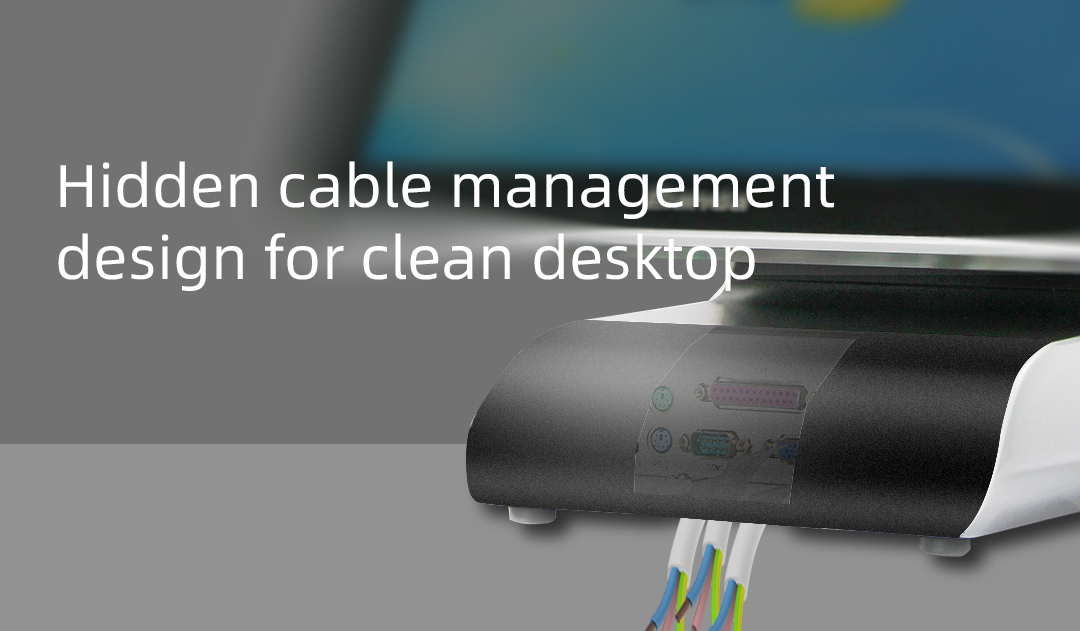

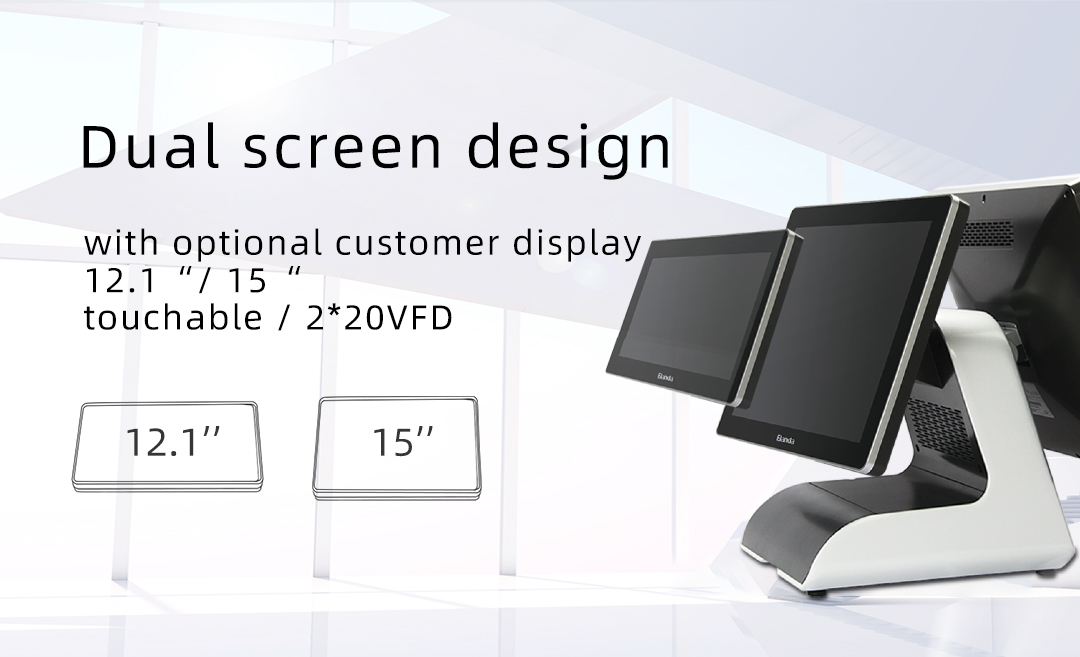

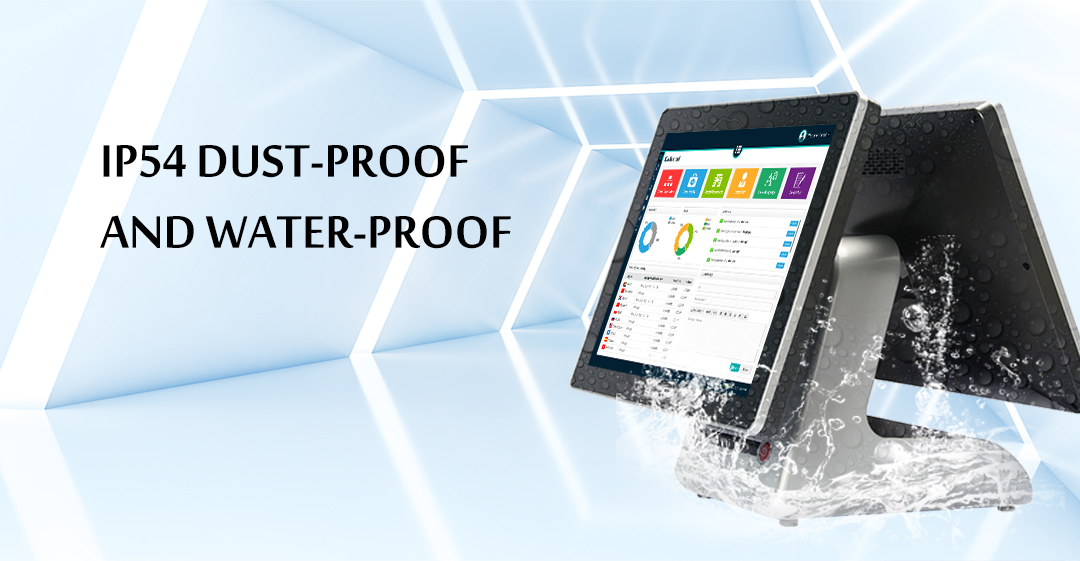

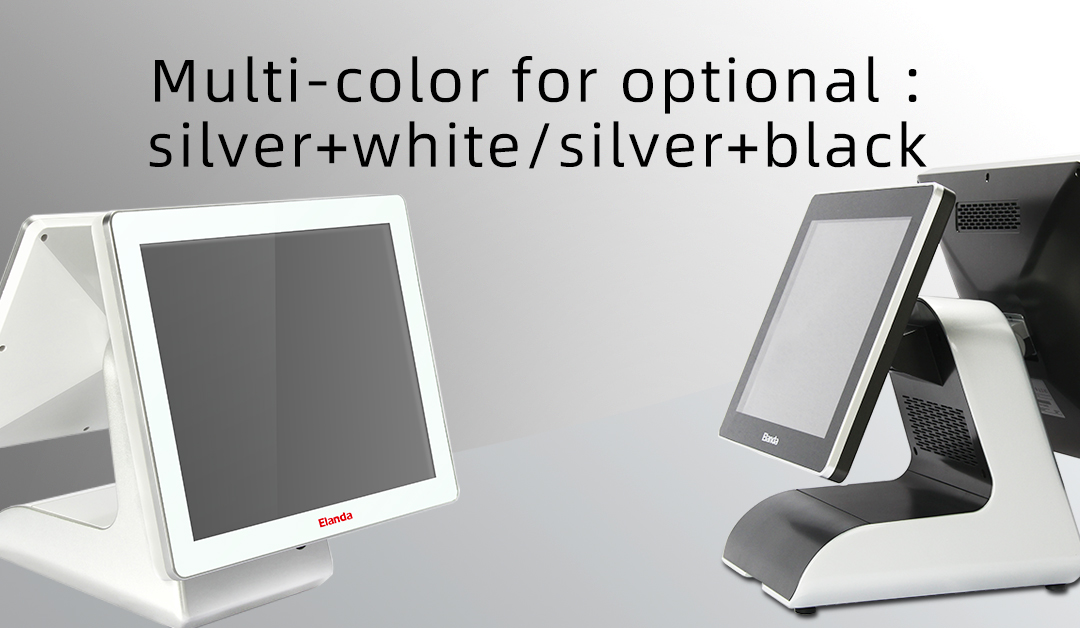

Multi-color for optional: silver+white/silver+black Dual screen design with optional customer display 12.1“ / 15'' touchable / 2*20VFD Stylish full metal base, more durable and better heat dissipation and anti-static IP54 dust-proof and water-proof Customized customer logo available Rich I/0 ports expansion Hidden cable management design for clean desktop Superior Serviceability and Easy Installation，Modular design peripherals for easy serviceability

item no.:
X200
Motherboard:
J6412/i3 / i5
Main screen size:
15 inch
Monitor resolution:
1024*768
Second screen:
12.1'' / 15'' touch screen / VFD 220
Quality warranty:
2 years

inquiry now

feature
specification

X200 Windows Touch Screen POS Terminal

Model Number		X200
CPU Support		Intel Elkhart Lake J6412 2.0GHz (up to 2.6GHz,1.5MB cache),FAN	Intel Core i3-skylake 2.0GHz (3MB Cache),FAN	Intel Core i5-skylake 2.0GHz (up to 3.1GHz, 4MB Cache)，FAN
System Memory		1 x DDR4,SO-DIMM, 4GB (Max. 32GB)	2x DDR3, SO-DIMM , 4GB (Max. 16GB)
Storage	SATA	N/A
	mSATA/M.2	1 xmSATA / M.2 SSD 128GB (64G/256G /512Goptional )	1 xmSATA SSD 128GB (64G/256G /512Goptional )
Main screen	Size	15" TFT LCD Panel
	Brightness	250 ~ 350 cd/m2 (Typ.)
	Resolution	1024 x 768
	touch	True-Flat Projected Capacitive Touch
Second display	Size	15" TFT LCD Panel
	Brightness	250 ~ 350 cd/m2 (Typ.)
	Resolution	1024 x 768
	touch (optional)	True-Flat Projected Capacitive Touch (optional)
Tilt Angle		0 ~ 60 degree
External I/O Port	USB	2 x USB 3.0 +4 x USB 2.0
	Serial port	2 x Serial port (1xDB9)optional;	2 x Serial port (DB9);
	VGA	1 x VGA
	HDMI	1 x HDMI
	Cash Drawer Port	N/A
	LAN	1 x LAN (10/100/1000Mb)
	Audio	1 x Audio
	DC-In	1 x DC In
	DC-Out	N/A
	Power Switch	1 x Power Switch
Speaker		1 x 2W Speaker (Optional)
Power		External power adapter, 12V-5A/60W
EMC Safety		CE, ROHS, UKCA, FCC
Environment	Operating Temperature	0°C ~ 35°C
	Storage Temperature	-15°C ~ 60°C
	Operating Humidity	20% - 85% RH non condensing
	Storage Humidity	20% - 85% RH non condensing
OS Support		Windows11/10 LTSC/Ubuntu 20.0.4	Windows7/10 LTSC/Ubuntu 18.0.4
Packing Dimensions（LWH）		430145455(mm)
Weight (N.W./G.W.)		9.15KG / 11.32KG
Wall Mount		VESA 100 x 100mm
optional	CPU	Intel Core I3 Haswell, FAN Intel Core I5 Boardwell, FAN Intel E3950 1.6GHz(up to 2.0GHz,2MB cache), FANLESS
	WiFi	mPCI-E WiFi/BT
	Fingerprint	N/A
	MSR (USB)	MSR + iButton (Combo) o r MSR +RFID (Combo) ,USB(VCOM optional) , 1、2 、3 Track, ISO7810,7811-1/2/3/4/5,IBM,AAMVA,JIS-2 Standard
	Scanner	N/A
	Customer display	VFD, 20 Columns*2 Lines
	2nd Display	1024768, 12”LCD Display, 800600
