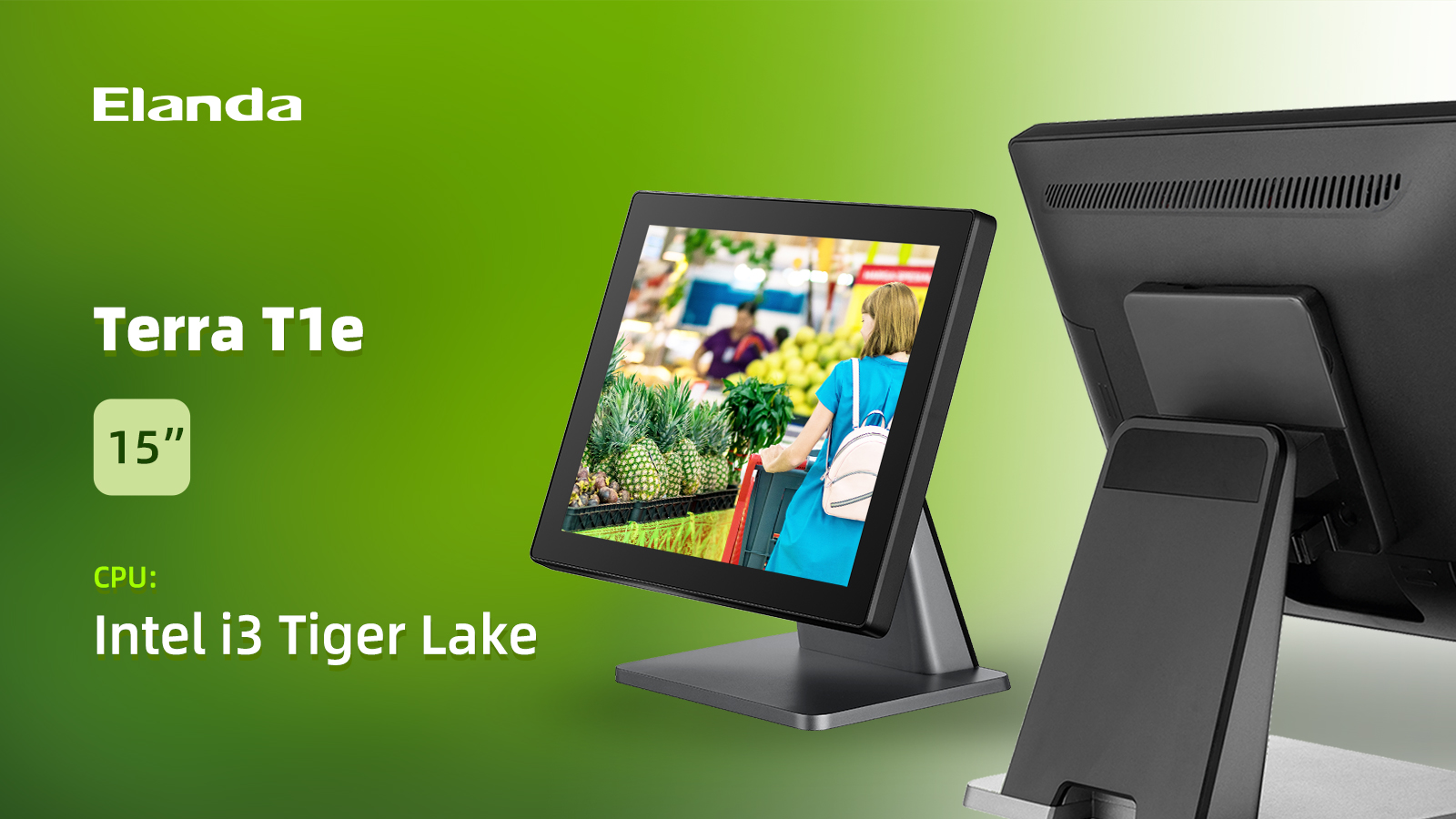

15inch Aluminum Base Touch POS Terminal( Model No.: T1e)

15inch Aluminum Base Touch POS Terminal( Model No.: T1e)

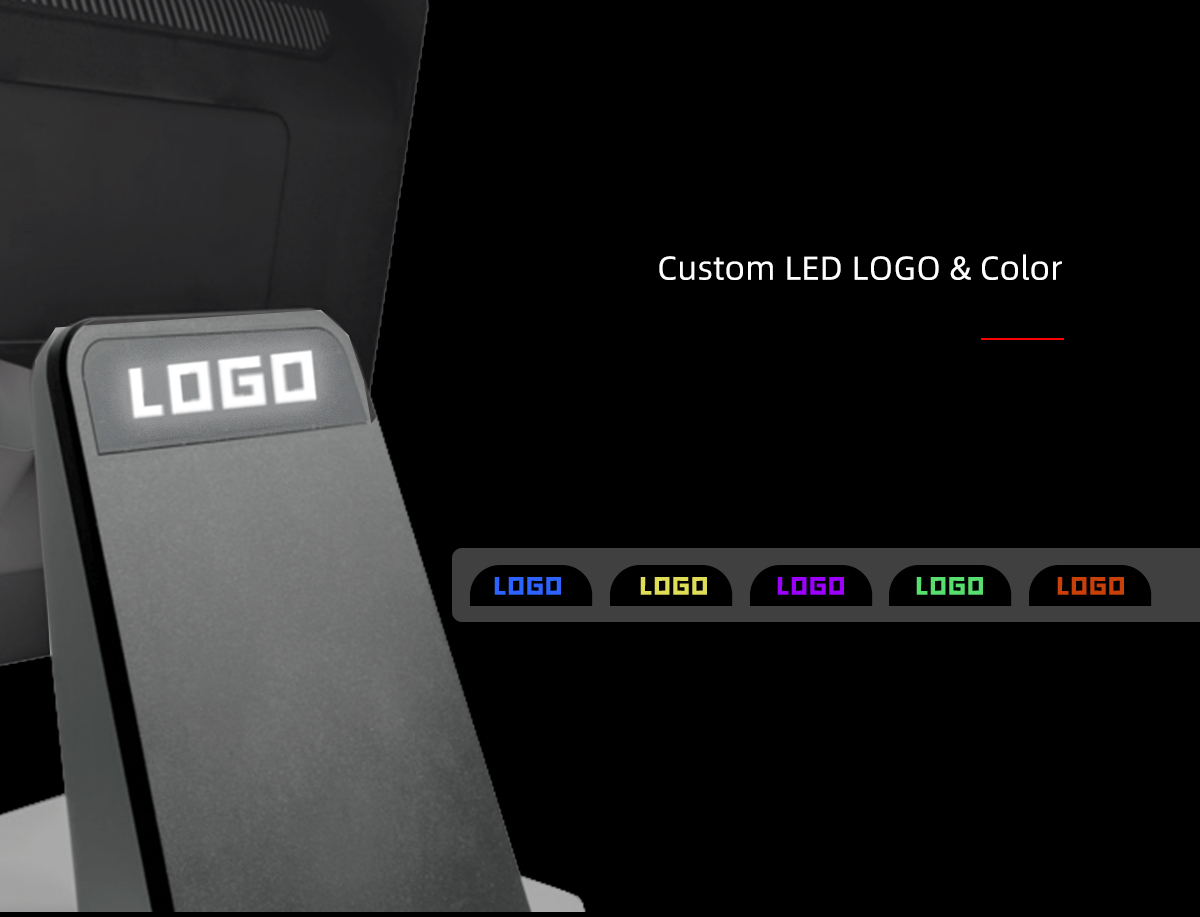

1. 15 inch 2. Industrial-grade Fan-free MB supporting Intel 11th gen CPU 3. Aluminum die-casting base 4. Magnetic cover with LED logo customization

item no.:
T1e
lead time:
7-15days
product orgin:
Shenzhen,China
shipping port:
Shenzhen port
color:
Black
Motherboard:
J6412/I3/I5
Main screen size:
15 inch
Monitor resolution:
1024*768
Second screen:
VFD 220 / VGA, 9.7
Quality warranty:
2 years

inquiry now

feature
specification

Model Number		T1e
CPU Support		Intel Elkhart Lake J6412 2.0GHz (up to 2.6GHz,1.5MB cache),FAN	Intel Core i3-skylake 2.0GHz (3MB Cache),FAN	Intel Core i5-skylake 2.0GHz (up to 3.1GHz, 4MB Cache)，FAN
System Memory		1 x DDR4,SO-DIMM, 4GB (Max. 32GB)	2x DDR3, SO-DIMM , 4GB (Max. 16GB)
Storage	SATA	N/A
	mSATA/M.2	1 xmSATA / M.2 SSD 128GB (64G/256G /512Goptional )	1 xmSATA SSD 128GB (64G/256G /512Goptional )
LCD	Size	15" TFT LCD Panel
	Brightness	250 ~ 350 cd/m2 (Typ.)
	Resolution	1024 x 768
Touch Screen		True-Flat Projected Capacitive Touch
Tilt Angle		0 ~ 60 degree
External I/O Port	USB	4 x USB 3.0	2 x USB 3.0 +2 x USB 2.0
	Serial port	2 x Serial port (1xRJ50+1xDB9);	2 x Serial port (RJ50);
	VGA	1 x VGA
	HDMI	1 x HDMI
	Cash Drawer Port	N/A
	LAN	1 x LAN (10/100/1000Mb)
	Audio	1 x Audio
	DC-In	1 x DC In
	DC-Out	1 x DC-Out(12V VGA power)
	Power Switch	1 x Power Switch
Speaker		2 x 2W Speaker (Optional)
Base LED		USB, White, 95X20X2.8mm (Optional)
Power		External power adapter, 12V-5A/60W
EMC Safety		CE, ROHS, UKCA, FCC
Environment	Operating Temperature	0°C ~ 35°C
	Storage Temperature	-15°C ~ 60°C
	Operating Humidity	20% - 85% RH non condensing
	Storage Humidity	20% - 85% RH non condensing
OS Support		Windows11/10 LTSC/Ubuntu 20.0.4	Windows7/10 LTSC/Ubuntu 18.0.4
Dimension (W x D x H)		360mm230mm340mm
Weight (N.W./G.W.)		4.5Kg / 6.0Kg
Wall Mount		VESA 100 x 100mm
optional	WiFi	mPCI-E WiFi/BT
	Fingerprint	U4500(USB Fingerprint Reader Module）
	MSR (USB)	MSR + iButton (Combo) or MSR +RFID (Combo), USB(VCOM optional), 1、2 、3 Track, ISO7810, 7811-1/2/3/4/5, IBM, AAMVA, JIS-2 Standard
	Scanner	DY3090(USB,1D,2D,Reading precision:≥3mil,Dimension:21.4mm10.815.2mm)
	Customer display	VFD display, USB (VCOM), 2x20 characters
	2nd Display	VGA, 9.7" (1024768) VGA, 11.6" (1366768) VGA, 12.1" (1280*800)
