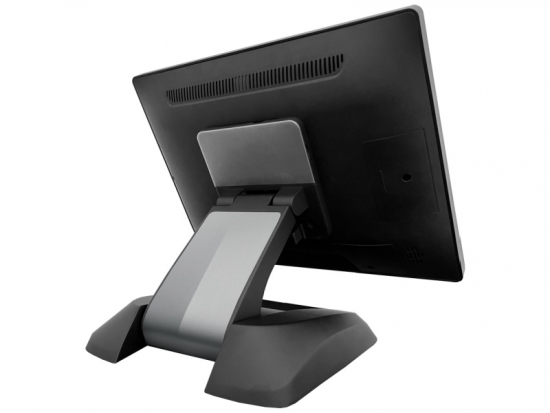

15 inch Foldable Aluminum Base Touch POS Terminal (Model No.:Z1e)

15 inch Foldable Aluminum Base Touch POS Terminal (Model No.:Z1e)

1. Intel® CPUElkhart Lake J6412,Tiger LakeCore™I3, I5 2. 15" Industrial-grade LCD with PCT 3. DDR4 memory 4. Spill and dust-resistant 5. Folding base design 6. VESA mount 7. Modularoptions: 2nd Display, MSR(Combo),NFC, VFD,Fingerprint reader

item no.:
Z1e
product orgin:
Shenzhen, China
shipping port:
Shenzhen Port
color:
Black
Motherboard:
J6412/I3/I5
Main screen size:
15inch
Monitor resolution:
1024*768
Second screen:
11.6
Quality warranty:
2 years

inquiry now

feature
specification

Model Number		Z3
CPU Support		Intel Elkhart Lake j6412 2.0GHz (up to 2.6GHz,1.5MB Cache), FANLESS	Intel Tiger Lake I3 1115G4 3.0GHz(up to 4.1GHz,6MB Cache), FANLESS	Intel Tiger Lake I5 1135G7 2.4GHz(up to 4.2GHz,8MB Cache), FANLESS
System Memory		1 x DDR4,SO-DIMM, 4GB (Max. 32GB)	1 x DDR4,SO-DIMM, 4GB (Max. 64GB)
Storage	SATA	1x 2.5” SATA SSD 128GB (64G/256G /512Goptional )	1x m.2-SSDSSD 128GB (64G/256G /512Goptional )
	mSATA	1x mSATA-SSD(Optional)
LCD	Size	15" TFT LCD Panel
	Brightness	250~350cd/m2 (Typ.)
	Resolution	1024 x 768
Touch Screen		True-Flat Projected Capacitive Touch
Tilt Angle		0 ~ 60 degree
External I/O Port	USB	4 x USB 3.0 +2 x USB 2.0 （Powerd, default setting)	4 x USB 3.0 +2 x USB 2.0
	Serial port	3 x Serial port (RJ50); (COM1~3: 0/5/12V by pin-JP)	2 x Serial port (RJ50); (COM1~2: 0/5/12V by pin-JP)
	VGA	1 x VGA (Power enable by BIOS; +12V)	N/A
	HDMI	1 x HDMI Connector (enable by BIOS, VGA Colay)	1 x HDMI
	Cash Drawer Port	1 x RJ11,12V&24V	N/A
	LAN	1 x LAN (10/100/1000Mb)
	AUDIO	1 x Mic-In/Speaker-out (Combo Jack)
	DC-IN	1 x DC In(4PIN)	1 x DC In
	DC-Out	N/A	1 x DC12V(2nd Display Power)
	Power Switch	1 x Power Switch
Speaker		2 x 2W speaker (Optional)
Base LED		N/A
Power		External power adapter, 12V-5A/60W	External power adapter, 12V-7A/84W
EMC Safety		CE FCC UKCA ROHS
Environment	Operating Temperature	0°C ~ 35°C
	Storage Temperature	-15°C ~ 60°C
	Operating Humidity	20% - 85% RH non condensing
	Storage Humidity	20% - 85% RH non condensing
OS Support		Windows11/10 LTSC/Ubuntu 20.0.4
Dimension (W x D x H)		360mm240mm350mm
Weight (N.W./G.W.)		4.6Kg/6.3Kg
Wall Mount		VESA 100 x 100mm
Optional	WIFI	mPCI-E WiFi/BT
	Fingerprint	U4500(USB Fingerprint Reader Module）
	MSR	MSR + iButton (Combo) or MSR+RFID (Combo), USB(VCOM optional), 1、2 、3 Track, ISO7810, 7811-1/2/3/4/5, IBM,AAMVA, JIS-2 Standard
	Scanner	DY3090(USB, 1D,2D, Reading precision:≥3mil,Dimension:21.4mm10.815.2mm)
	Customer display	VFD display, USB (VCOM), 2x20 characters

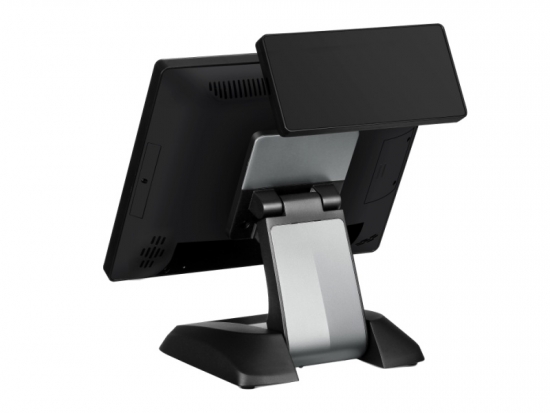

	2nd Display	VGA, 9.7" (1024768) VGA, 11.6" (1366768) VGA, 12.1" (1280*800)	HDMI, 11.6" (1366*768)
