Model Number
|
A3
|
CPU Support
|
Rockchip3568 ,Cortex-A55 , up to 2.0GHz
|
System Memory
|
DDR4,4G(Onboard) (2G for optional)
|
Storage
|
eMMC 32G + sim card slot x 1 ( (16G for optional)
|
LCD
|
Size
|
15.6" TFT LCD Panel
|
Brightness
|
220~250cd/m2 (Typ.)
|
Resolution
|
1366*768 (1920 x 1080 optional)
|
Touch Screen
|
True-Flat Projected Capacitive Touch
|
Tilt Angle
|
0 ~ 60 degree
|
External I/O Port
|
USB
|
2 x USB 3.0 +2 x USB 2.0
|
Serial port
|
1 x Serial port (RJ12)
|
EDP(Mini HDMI)
|
EDP Signal(for 2nd Display port)optional
|
Cash Drawer Port
|
1 x Cash Drawer Port (RJ11), DC12V
|
LAN
|
1 x LAN (10/100/1000Mb)
|
Audio
|
N/A
|
DC-IN
|
1 x DC In(4pin)
|
DC-Out
|
N/A
|
Power Switch
|
1 x Power Switch(Power LED)
|
WiFi&BT
|
WiFi/BT(Onbaord)
|
Speaker
|
2 x 2W speaker (Optional)
|
Base LED
|
USB,White,95X20X2.8mm (Optional)
|
Power
|
External power adapter,12V-5A/60W
|
EMC Safety
|
CE, ROHS
|
Environment
|
Operating Temperature
|
0°C ~ 35°C
|
Storage Temperature
|
-15°C ~ 60°C
|
Operating Humidity
|
20% - 85% RH non condensing
|
Storage Humidity
|
20% - 85% RH non condensing
|
OS Support
|
Android 11.0
|
Dimension (W x D x H)
|
385mm*200mm*320mm/package size:445mm*310mm*415mm
|
Weight (N.W./G.W.)
|
3.8Kg / 5.5Kg
|
Wall Mount
|
VESA 100 x 100mm
|
optional
|
MSR
|
MSR + iButton (Combo) o r MSR +RFID (Combo) ,USB , 1、2 、3 Track, ISO7810,7811-1/2/3/4/5,
IBM,AAMVA,JIS-2 Standard
|
Fingerprint
|
U4500(USB Fingerprint Reader Module)
|
Scanner
|
DY3090(USB,1D,2D,Reading precision:≥3mil,Dimension:21.4mm*10.8*15.2mm)
|
Customer display
|
VFD display, USB(VCOM),2x20 characters
|

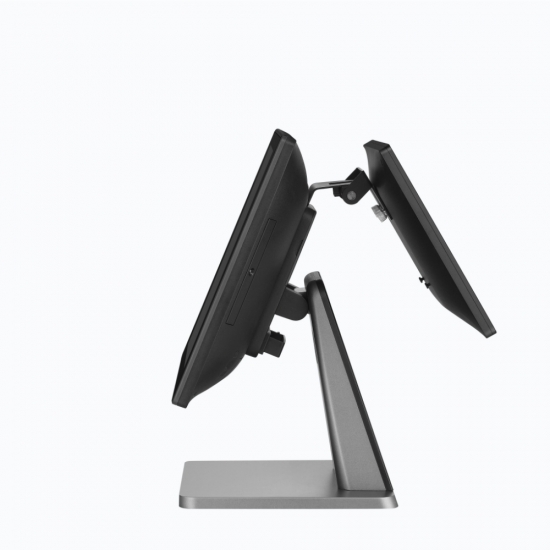

2nd Display
|
EDP,11.6" (1366 x 768)
EDP,15.6" (1366 x768)
|
