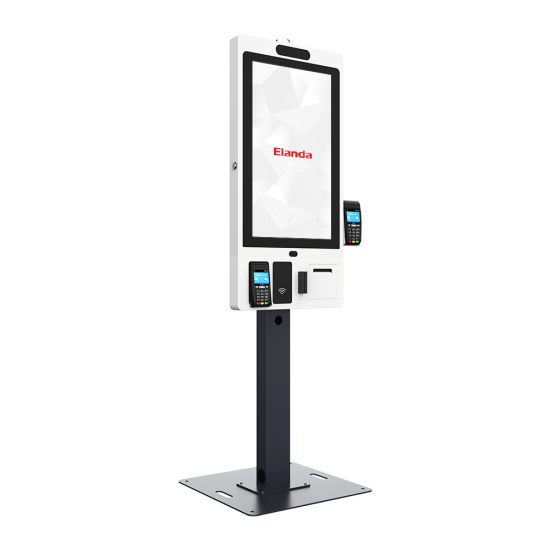

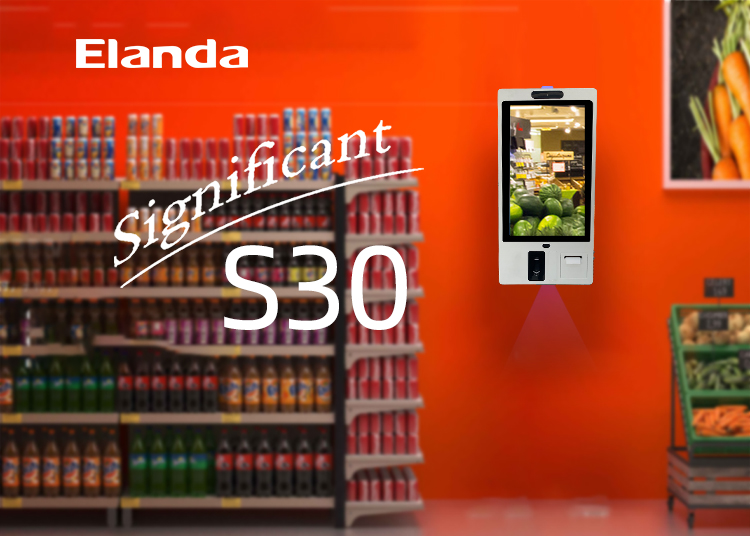

32 inch High Modular Touch Self-Service Kiosk (Model No.: S30)

32”& 21.5” Module design and easy to maintain Strong, sealed, safe, 3-year warranty Desktop, free standing and wall-mounted optional

item no.:
S30
shipping port:
Shenzhen Port
Motherboard:
i3/i5/RK3568
Main screen size:
32 inch
Monitor resolution:
1920*1080
Quality warranty:
3 years

inquiry now

feature
specification

Model Number		S30
CPU Support		Intel Elkhart Lake J6412 2.0GHz (up to 2.6GHz,1.5MB Cache)	Intel Core i3 1115G4 3.0GHz (up to 4.1GHz)	Intel Core i5 1135G7 2.4GHz (up to 4.2GHz)
System Memory		1 x DDR4,SO-DIMM, 4GB (Max. 32GB)	1x DDR4, SO-DIMM, 4G, Max.64GB
Storage Device		1 x mSATA/M.2 SSD 128GB (64G/256G optional )	1 x mSATA 128G(64G/256G/512G optional )

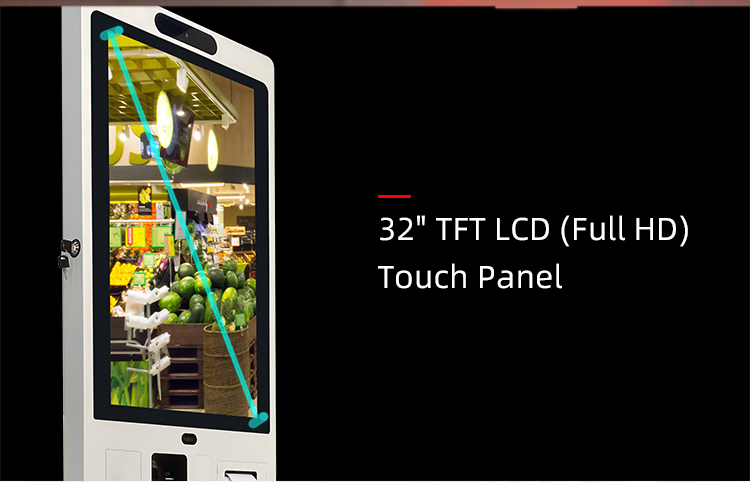

LCD	Size	32" TFT LCD Panel
	Brightness	300-350 cd/m²
	Resolution	1920 x 1080
Touch Screen		True-Flat Projected Capacitive Touch
External I/O Port	USB	3xUSB3.0 +7xUSB2.0	4 x USB3.0 +6xUSB2.0
	Serial port	2xRJ50 + 1xDB9	2 x DP9
	DC-IN	1x DC-IN	1 x DC-IN
	VGA	N/A	1 x VGA
	HDMI	2xHDMI	2 x HDMI
	LAN	2xLAN（10/100/1000Mb）	1 x LAN（10/100/1000Mb）
	Audio	1xAudio（3.5mm earphone connector,Support Line-Out&Line-In）	1 x Audio
	LVDS Signal	1xLVDS Signal 30pin receptacle	N/A
	LVDS Backlight	1xLVDS Backlight 6pin receptacle	N/A
	Speaker	2 x 2w Speaker receptacle（2pin 2W）	N/A
	Power Switch	1 x Power Switch	1 x Power Switch
Power		1 x 12V-5A 60W (system) / 1 x 24V-2A 48W (Printer)	1 x 12V-7A/84W (system) + 1 x 24V-2A/48W(Printer)
OS Support		Windows 10 /11 LTSC /Ubuntu 20.0.4

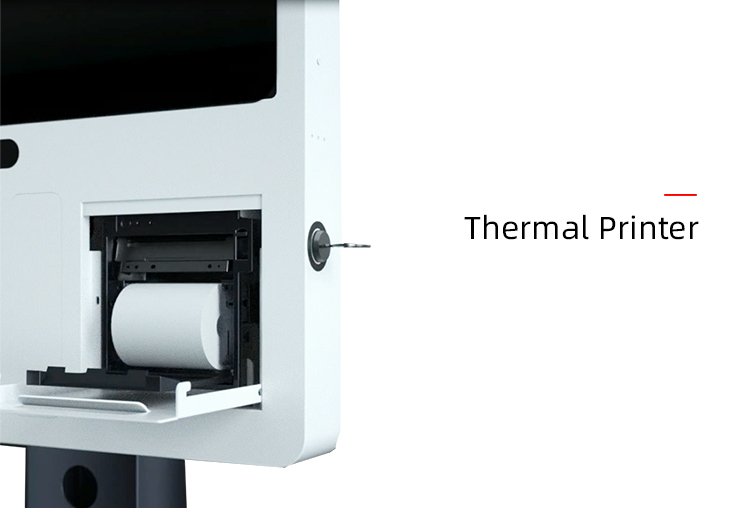

Standard Components	Printer	3" thermal printer w/auto cutter, 170 mm/sec (max.)

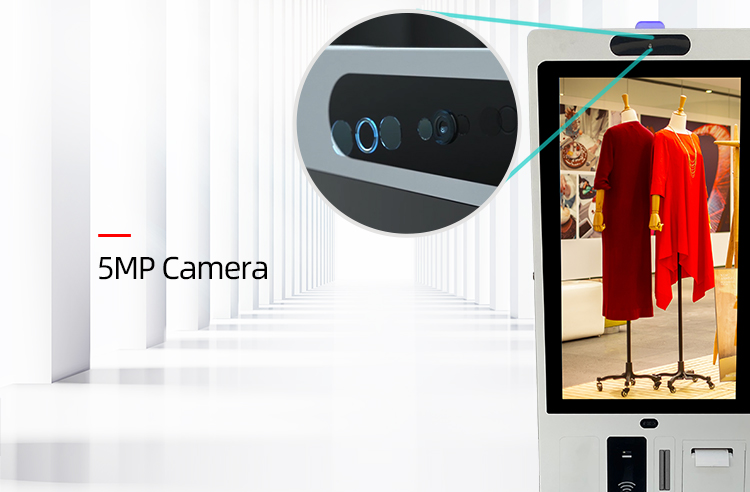

	Camera	5MP Single camera /5MP Dual camera（Optional）

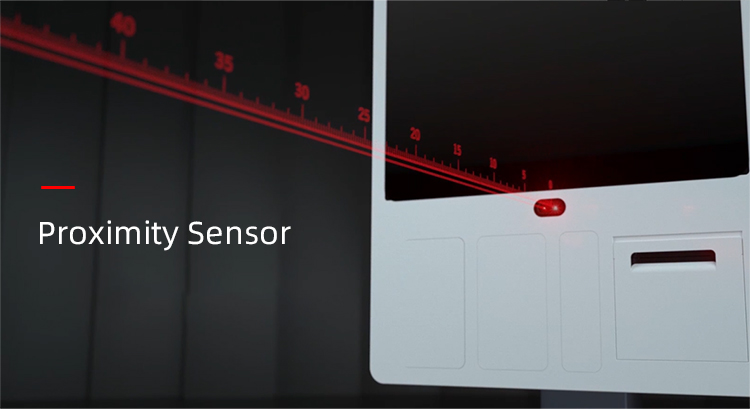

	Proximity Sensor	Range from 60-80cm
	Speaker	2 x 2w Speakers
Environment	Operating Condition	0°C ~ 50°C, 20% - 90% RH
	Storage Condition	-20°C ~ 70°C, 10% - 90% RH
Physical Parameter	Screen	526mm x 100mm x 1076mm
	Column	120mm x 85mm x 1200mm
	Chassis	601.5mm x 601.5mm x 6mm
Optional	WIFI	mPCI-E WiFi/BT module
	Scanner	VH460 (USB, 1D, 2D, Reading precision: ≥ 3mil, Dimension: 36mm x 45mm x 25mm) DY3090 (USB, 1D, 2D, Reading precision: ≥ 3mil, Dimension: 21.4mm x 10.8mm x 15.2mm)
	MSR	USB-HID Mode; 1, 2, 3 Track; ISO7810, 7811-1/2/3/4/5, IBM, AAMVA, JIS-2 Standard

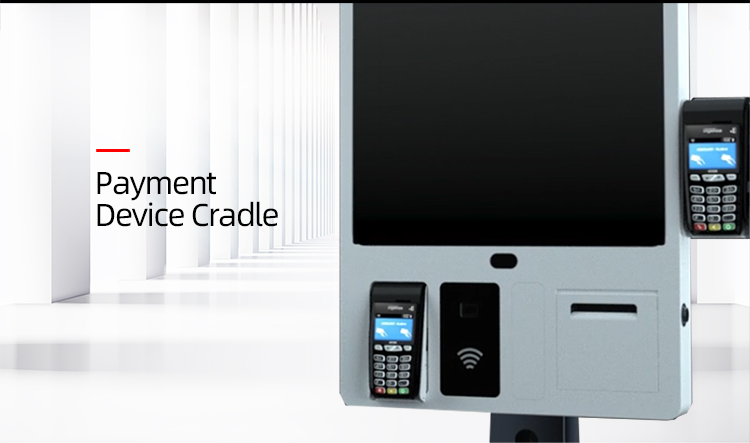

	Payment Device Bracket	Custom bracket support for various EMV payment devices

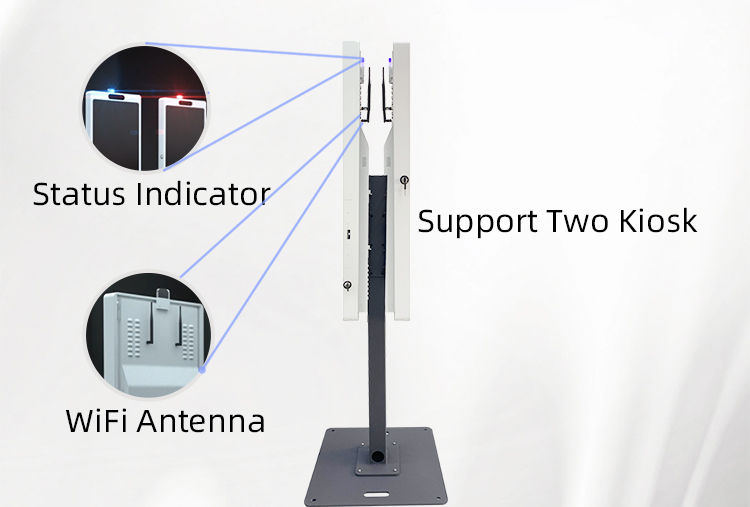

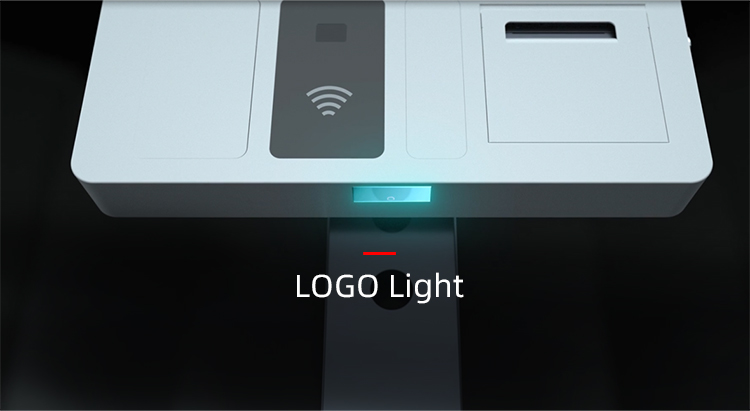

	Status light	Printer status light (Red light indicate error, Blue light indicate working)
	NFC/RFID Reader	Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), NFC protocols - tag read/write (ISO/IEC-18092)
	Pedestal	Metal chassis, Metal columns

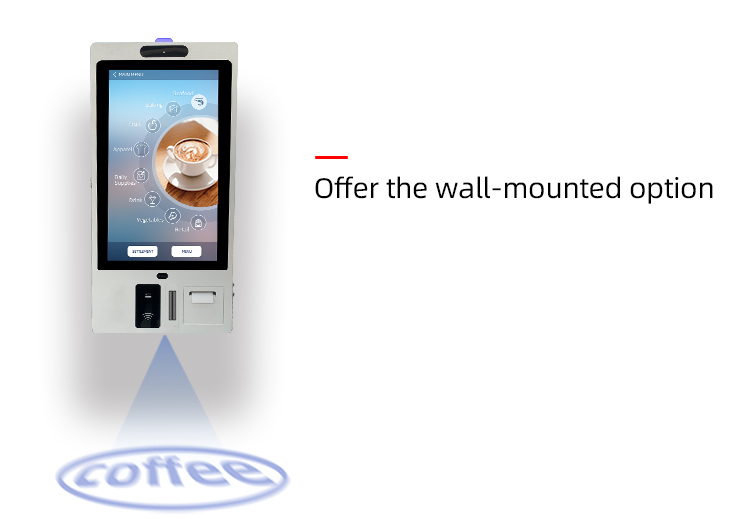

	Wall Mount Bracket	Wall Mount Bracket (70mm from Wall to System)
