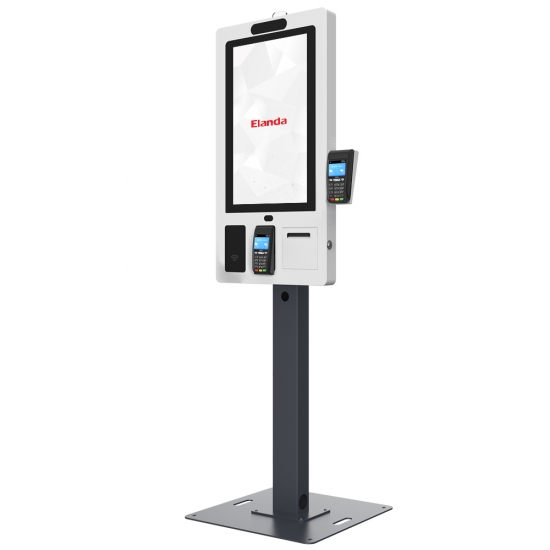

21.5 inch High Modular Touch Self-Service Kiosk (Model No.: S22+）

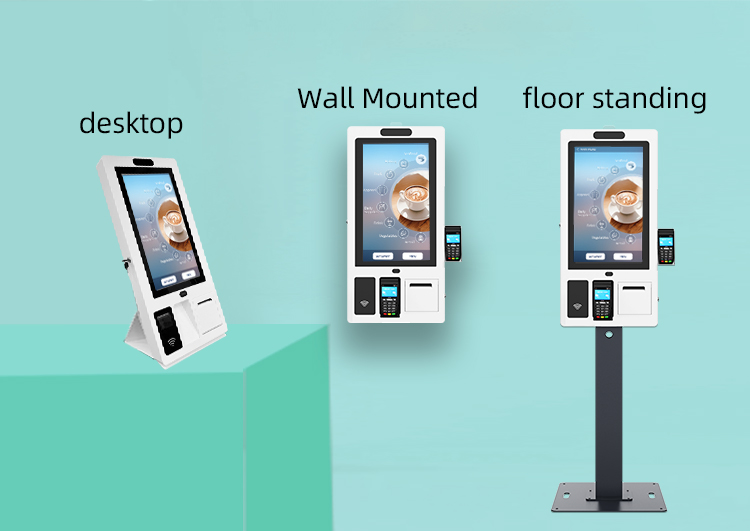

21.5" FHD industrial-grade LCD with PCAP touch panel Modular design, with printer, camera, proximity sensor Optional status indicator , scanner , MSR, FRID/NFC reader Support both Windows and Android Standard I/O ports connection Sturdy pedestal, able to support two kiosks, desktop and wall mount optional Lock (for kiosk chassis and printer) strengthens safety Invisible, neat and safe cable management Splashproof and dust-prevent design, excellent cooling system.

Main screen size:
21.5
Monitor resolution:
1920*1080
Quality warranty:
3 years

inquiry now

feature
specification

Model Number		S22+
CPU Support		Intel Core I3 tigerlake, FAN	Intel Core I5 skylake, FAN	Intel Elkhart Lake J6412, FAN	RK3568(2.0GHz)
System Memory		1 x DDR4, SO-DIMM, 4GB (Max. 16GB)	1 x DDR4, SO-DIMM, 4GB (Max. 16GB)	1 x DDR4,SO-DIMM, 4GB (Max. 32GB)	DDR4, 4G(Onboard)
Storage Device		1x mSATA 128G (64G/256G optional )	1x M.2 128G( 64G/256G optional )	1 x M.2 SSD 128GB (64G/256G optional )	eMMC 32G
Power		1 x 12V-5A/60W+ 1 x 24V-2A/48W
OS Support		Win10 /11	Win10	Win10 /11	Android 11

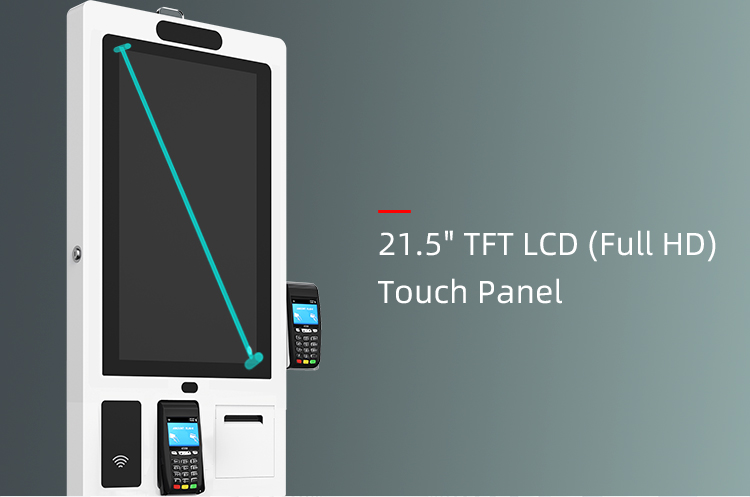

LCD	Size	21.5" TFT LCD Panel
	Brightness	1920*1080
	Resolution	250 cd/m²
Touch Screen		True-Flat Projected Capacitive Touch
External I/O Port	DC-IN	1 x DC In
	CR	N/A			1 xRJ11
	VGA	1 xVGA			N/A
	HDMI	1 xHDMI			N/A
	USB	2 x USB 3.0 +6 x USB 2.0 Ports			2 x USB 3.0 +4 x USB 2.0 Ports
	LAN	1 x LAN (10/100Mb)		1 x LAN (10/100/1000Mb)	1 x LAN (10/100/1000Mb)
	Audio	1 x Audio			N/A
	Serial port	1 x DB9(RS-232)			1 x RJ12(RS-232)

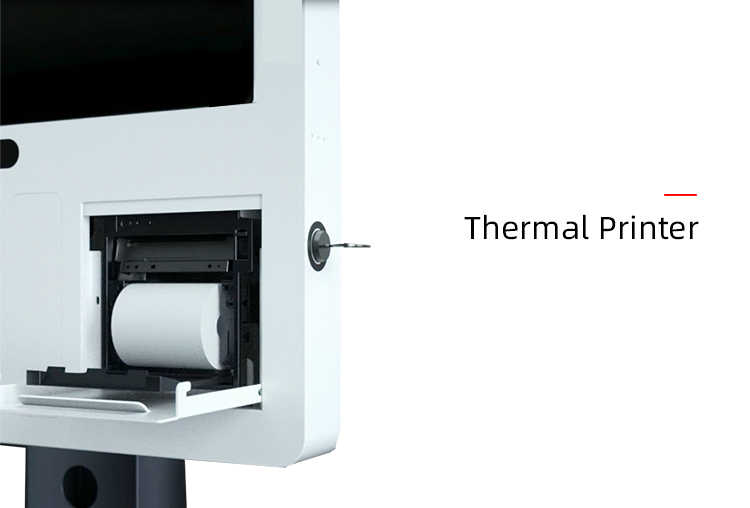

Standard Components	Printer	80mm thermal printer, auto-cutter, 170mm/sec (max.)

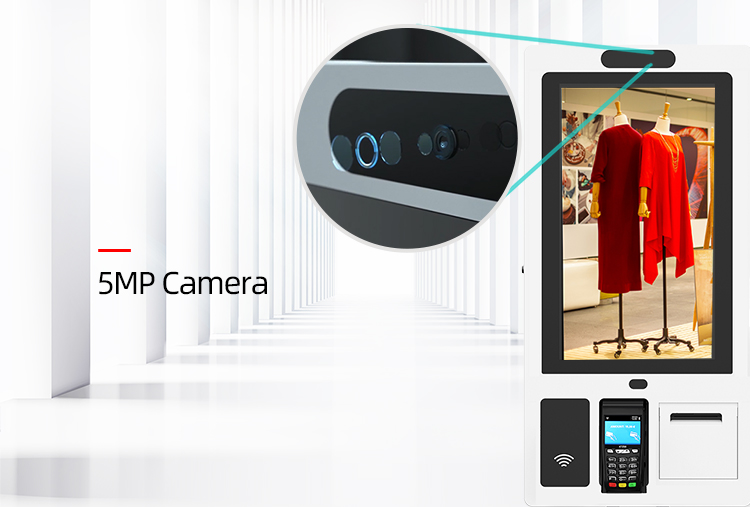

	Camera	2MP camera(5MP camera)( optional)

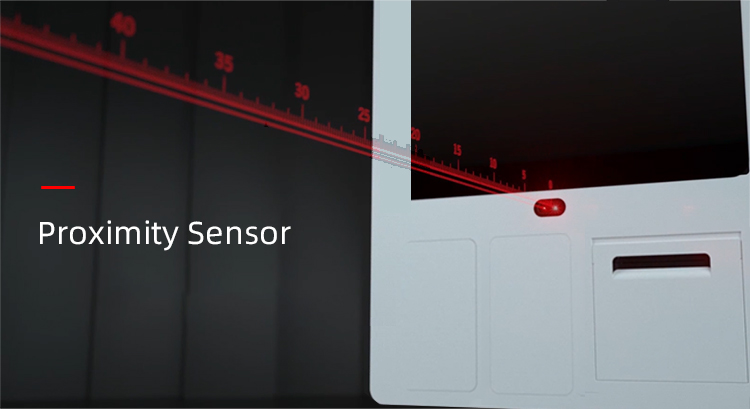

	Proximity Sensor	60-80cm Proximity Sensor( optional)
	Speaker	2 x 2w Speaker
Optional	WIFI	mPCI-E WiFi/BT module( optional)			WiFi/BT(onboard)

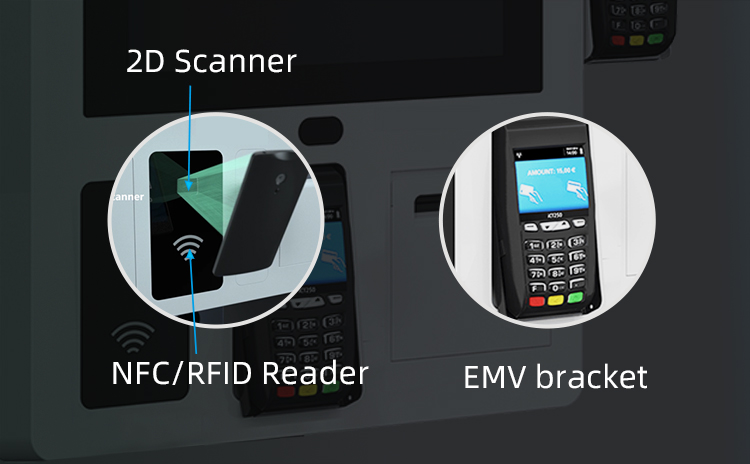

	Sanner	MP718(USB,1D,2D,Reading precision:≥4mil, Dimension:90.5mm35.480.2mm)
	MSR	MSR + iButton (Combo) or MSR +RFID (Combo) ,USB(VCOM optional), 1、2 、3 Track, ISO7810, 7811-1/2/3/4/5, IBM, AAMVA, JIS-2 Standard
	NFC/RFID Reader	Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), NFC protocols - tag read/write (ISO/IEC-18092)

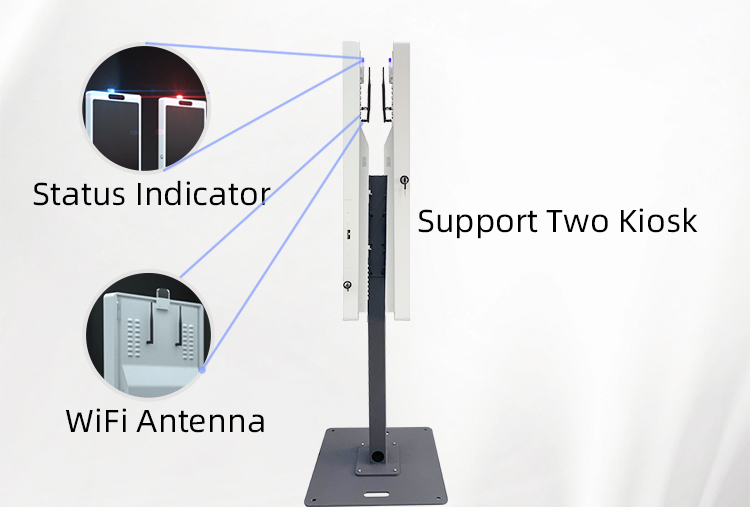

	Status light	Printer status light(Red light in error, Blue light when ready )
	System FAN	4 xSystem FAN
	Circuit Breaker	2P Circuit Breaker + Power Extention Socket( optional)
Environment	Operating Temperature	0°C - 50°C
	Storage Temperature	20%RH - 90%RH
	Operating Humidity	﹣20°C - 70°C
	Storage Humidity	10%RH - 90%RH
Physical Dimension	Principal machine	814410101.4mm
	Column	120912080mm
	Chassis	5004806mm
