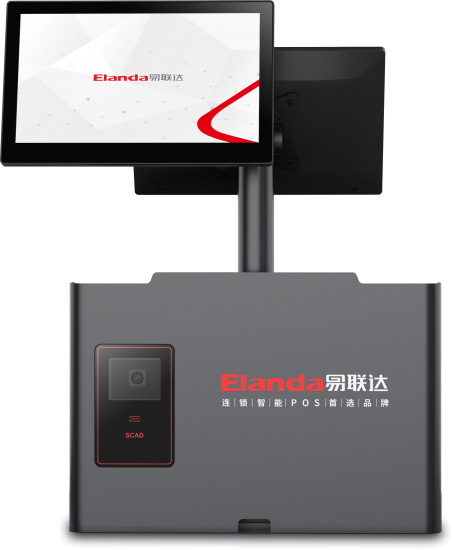

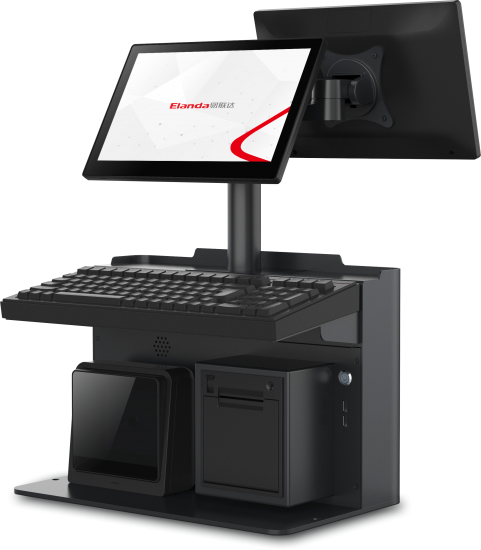

15.6 inch All-in-one Solution for Supermarkets (Model No. : C500)

15.6 inch All-in-one Solution for Supermarkets (Model No. : C500)

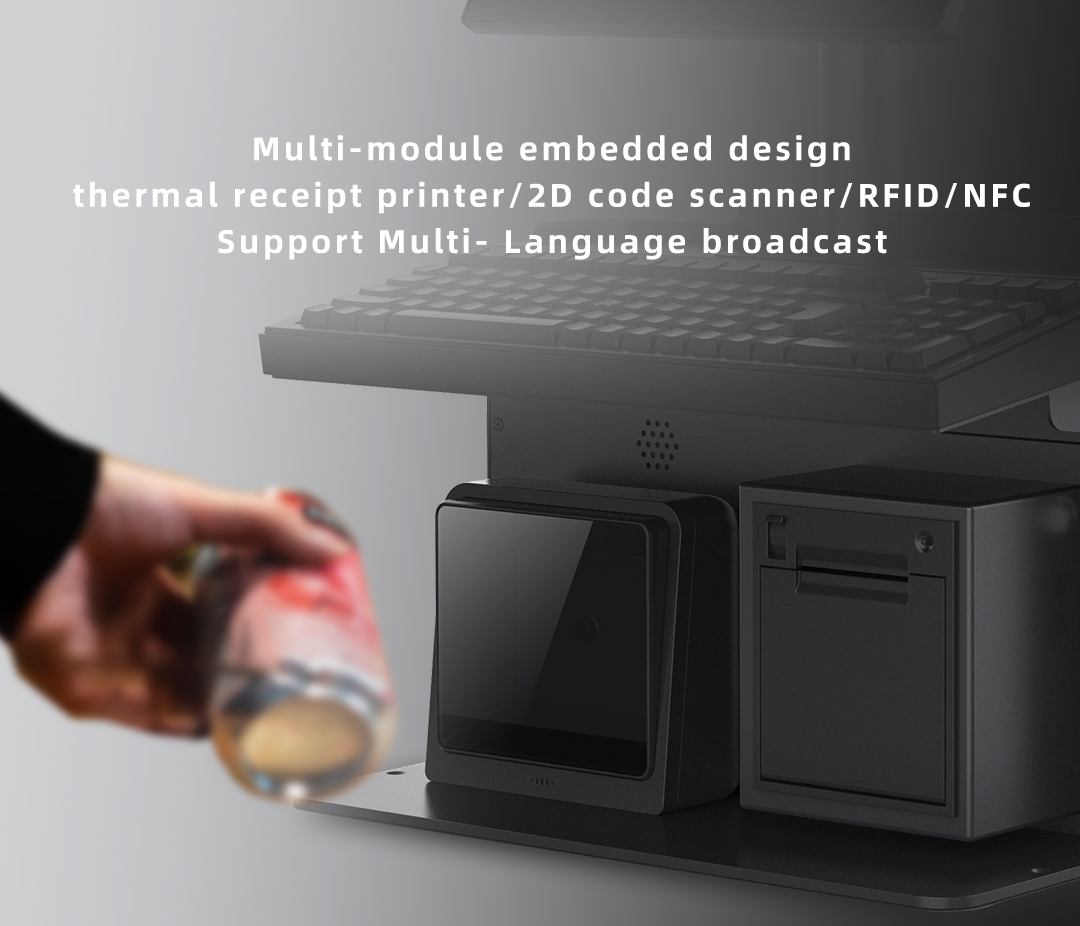

One-stop access, plug-and-play Flexible rotation All-in-one solution for supermarkets ( built-in scanner & RFID & printer, keyboard)

item no.:
C500
Motherboard:
J6412/i3/i5
Main screen size:
15.6''
Monitor resolution:
1366 x 768
Second screen:
11.6''
Quality warranty:
2 years

inquiry now

feature
specification

Model Number		C500
CPU Support		Intel Elkhart Lake j6412 2.0GHz (up to 2.6GHz,1.5MB Cache),FANLESS	Intel Core i3 Tigerlake-1115G4 3.0GHz (up to 4.1GHz), FAN	Intel Core i5 Tigerlake-1135G7 2.4GHz (up to 4.2GHz), FAN
System Memory		1 x DDR4,SO-DIMM, 4GB (Max. 32GB)	1 x DDR4,SO-DIMM , 4GB (Max. 64GB)
Storage Device		1 xmSATA / M.2 SSD 128GB (64G/256G /512Goptional )	1x mSATA SSD 128G(64G/256G/512G optional )
Main screen	Size	15.6" TFT LCD Panel （Optional ：11.6" TFT LCD Pane）
	Brightness	250cd/m2 Typ.
	Resolution	15.6" 1920*1080 （Optional ：11.6" 1366 x 768）
	touch	True-Flat Projected Capacitive Touch
Second display	Size	11.6" TFT LED VGA ,（Optional ：15.6" TFT LCD Pane）
	Brightness	220cd/m2 (Typ.) （Optional ：250cd/m2 (Typ.)( Brand BOE）
	Resolution	1366 x 768（Optional ：1920*1080）
	touch (optional)	True-Flat Projected Capacitive Touch

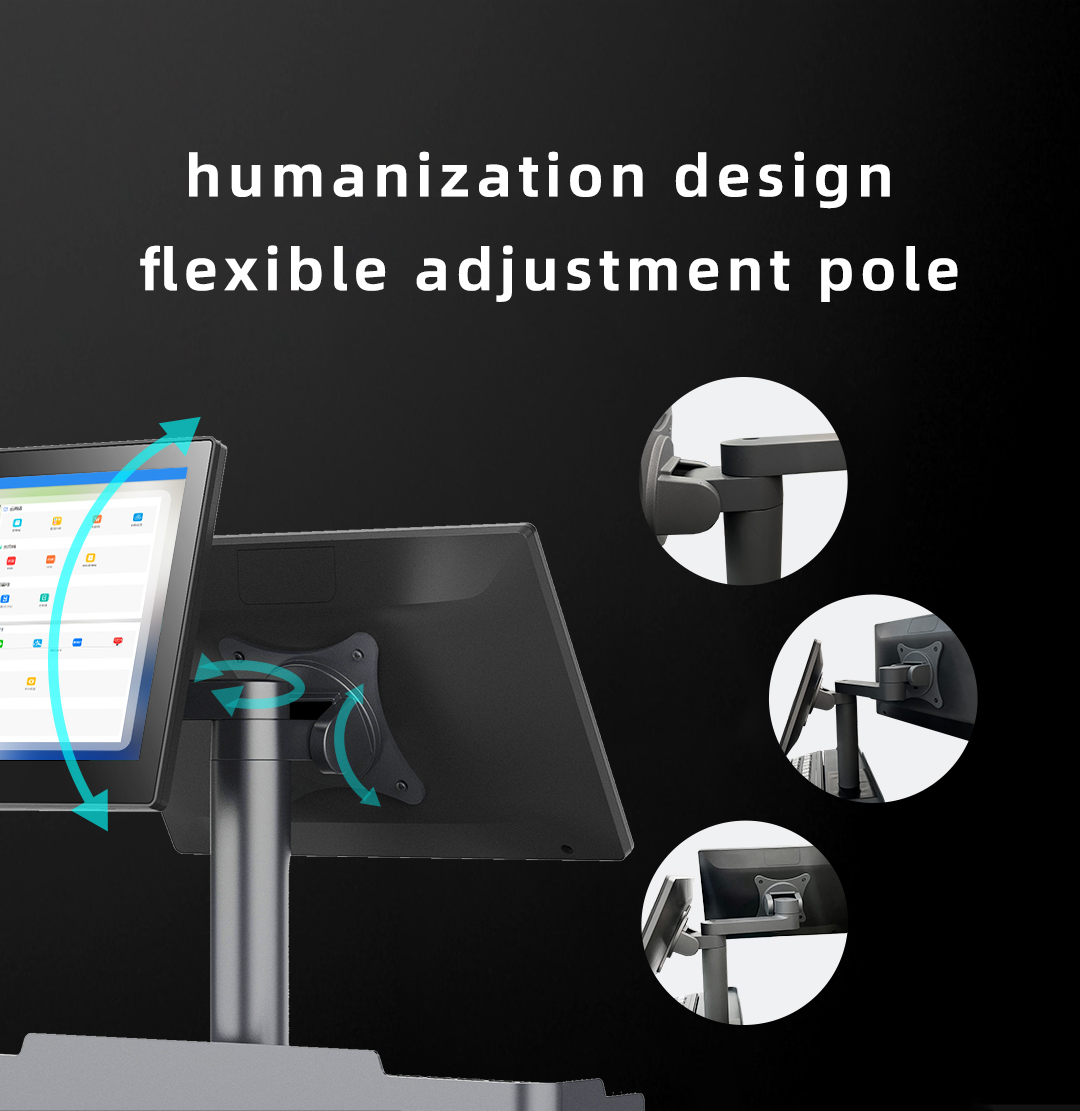

Tilt Angle		The main screen can be adjusted up and down 0 ~ 60 °, the secondary screen can be adjusted up and down 0 ~ 60 °, 11.6” 2nd and the left and right can be adjusted 0 ~ 180 °， 15.6” 2nd and the left and right can be adjusted 35 ~ 145 °，
External I/O Port	USB	2 x USB 3.0 +3 x USB 2.0	4 x USB 3.0 +3 x USB 2.0
	COM	2x RS232(DB9)
	VGA	1x VGA
	HDMI	N/A	2x HDMI
	Lan	1 x LAN (10/100/1000Mb)
	Audio	1 x Mic-In/Speaker-out (Combo Jack)
	DC-IN	1 x DC-IN	1 x 4pin DC-IN
	Power Switch	1 x Power Switch
Power		External power adapter, 12V-5A/60W	External power adapter, 12V-7A/84W
OS Support		Windows10/11, Ubuntu 20.0.4
EMC Safety		FCC CE ROHS
Environment	Operating Temperature	0°C ~ 35°C
	Storage Temperature	-15°C ~ 60°C
	Operating Humidity	20% - 85% RH non condensing
	Storage Humidity	20% - 85% RH non condensing
Dimension (W x D x H)		480mm x 240mm x 570mm
Weight (N.W./G.W.)		13.3Kg / 15.5Kg
Optional	2D Scanning platform	NFS-FR80
	Fingerprint	U4500(USB Fingerprint Reader Module）
	RFID	RD04
	POS holder	Handheld POS holder(Metal)
	Speaker	1 x 2W Speaker (Optional Factory Default)

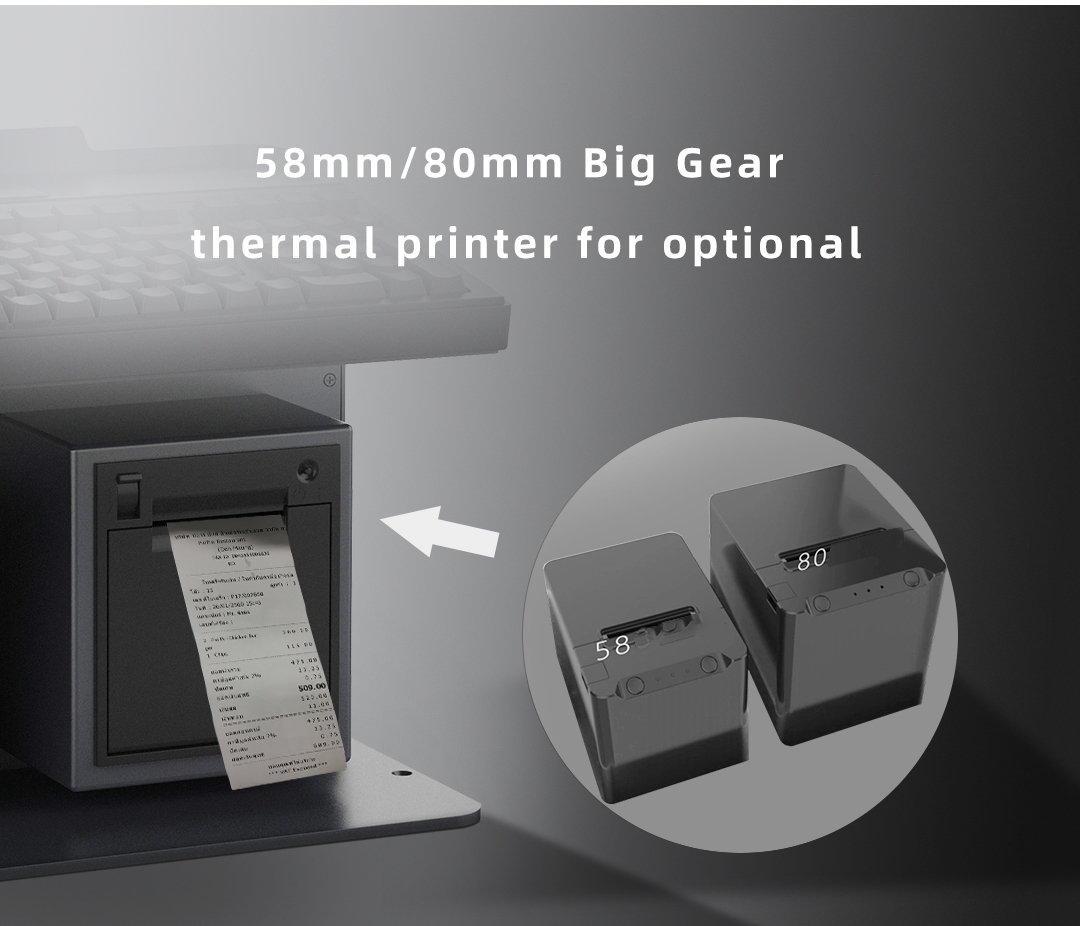

	Printer	USB and COM,80mm Thermal Printer(Cuter).
	Cash Port	RJ11,Cash Port is controlled by the printer.

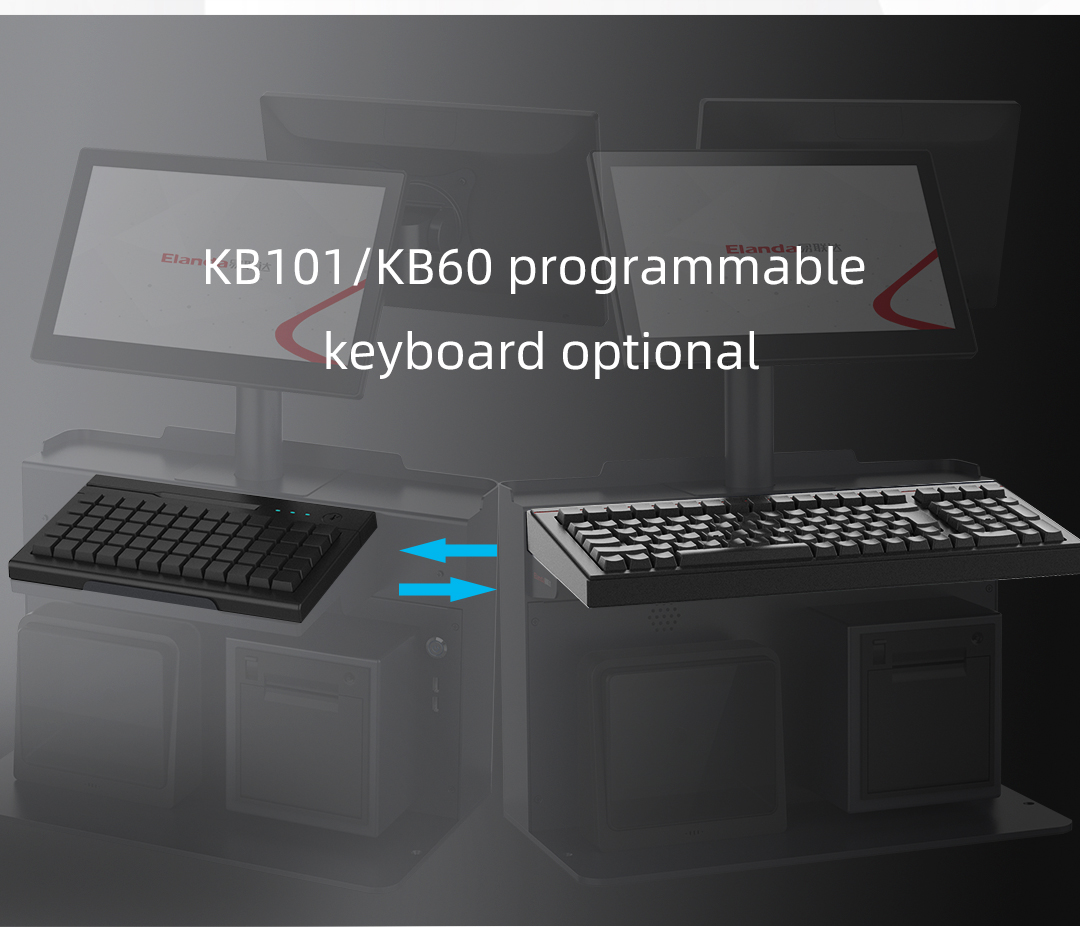

	keyboard	KB66 Programmable Keyboard,With MSR（Optional KB101 Keyboard）

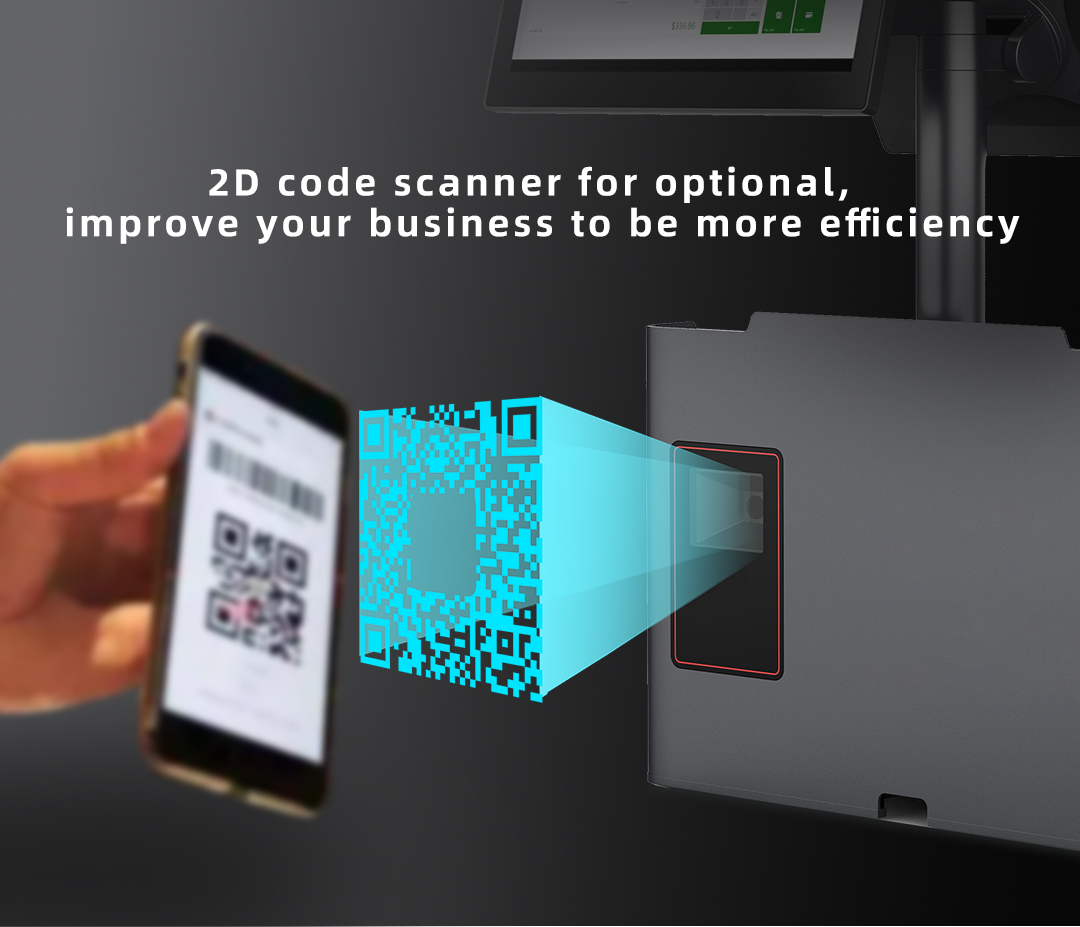

	2D scanner	USB,1D、2D Scanner
	WIFI&BT	mPCI-E/802.11/ 2.4Ghz
